316A, Cable Accessory
- Molded backshell with pigtail leads
- TPE jacket for flexibility and durability
- Braided shield for noise immunity
- Wide temperature range: -50°C to +125°C
- Compatible with TE models 8011, 8021, 8711

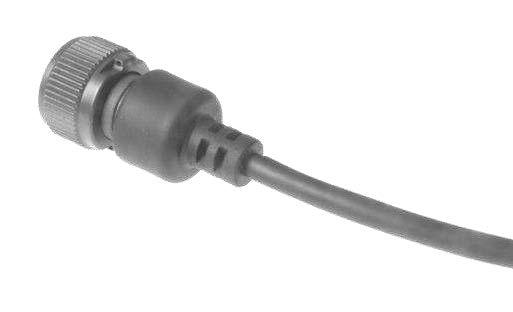

The 316A Cable Assembly is an industrial-grade connection solution specifically designed for TE Connectivity’s condition monitoring accelerometers (models 8011, 8021, and 8711). It features a molded backshell with a 2-pin connector that terminates into pigtail leads, ensuring reliable connectivity even in demanding industrial environments.
The cable incorporates two #22 AWG FEP-insulated conductors, a TPC braided shield for EMI protection, and a tough TPE outer jacket. With a wide operating temperature range from -50°C to +125°C and flexible design, the 316A is ideal for general-purpose machine monitoring, gearboxes, and harsh monitoring conditions.
Available in standard lengths of 10 ft (120 in), 20 ft (240 in), and 30 ft (360 in), custom lengths can also be arranged on request.

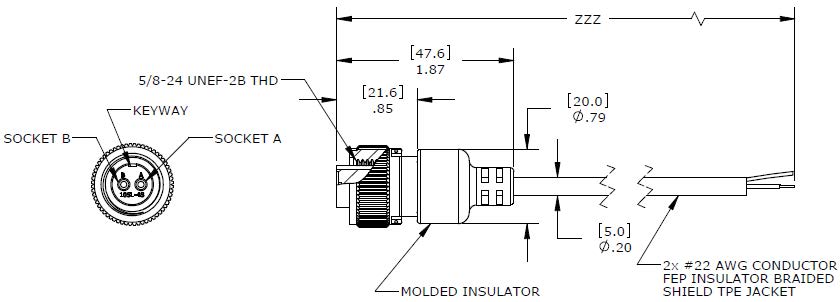

DIMENSIONS
| Type | DC Response |
| Cable Assembly | |
| # of Axis | 1 |
| Mounting | Screw |
| Upper frequency limit (3 dB) | 0.4 kHz |
| Full Scale Output Voltage | ±2 VDC |
- Industrial Applications
- Machine Monitoring
- General Purpose
- Gearbox Monitoring
| 316A-120 | Standard 10 ft (120 in) cable length |
| 316A-240 | Extended 20 ft (240 in) cable length |
| 316A-360 | Long 30 ft (360 in) cable length |
| 316A-400 | Extended 40 ft (400 in) cable length for long-distance industrial monitoring applications |
316A Cable Assembly Datasheet Datasheet |
