MV-GT1000, 10GigE Frame Grabbers
- Dual (GT1002) or Quad (GT1004) 10 GigE RJ45 camera support
- Compliant with GigE Vision V2.0 and GenICam standards
- PCI-E Gen2 ×8 interface with up to 3900 MB/s delivery bandwidth
- 2 GB DDR3 onboard memory
- Supports up to 4 streams at 10 Gbps each
- Real-time indicators for connection and stream status
- Wide range of supported pixel formats (Mono, Bayer, YUV, RGB)
- Jumbo frame support (up to 9 KB)
- 8 configurable GPIOs with voltage flexibility (3.3–24 VDC)
- Operating temperature: 0°C to 60°C
- Includes SDK and compatible with Windows & Ubuntu Linux
- CE, KC, RoHS certified
The MV-GT1000 Series is a high-speed 10 Gigabit Ethernet (GigE) frame grabber designed for industrial image acquisition applications. Fully compliant with the GigE Vision V2.0 protocol, this board interfaces directly with 10 GigE industrial cameras, enabling high-throughput video capture and robust communication.
It comes in two variants—MV-GT1002 (2-channel) and MV-GT1004 (4-channel)—each using RJ45 connectors to support electrical port cameras. The PCI-E Gen2 x8 host interface ensures fast data transmission with a peak bandwidth of up to 3900 MB/s and sustained rates of 3350 MB/s.
Equipped with 2 GB of onboard DDR3 memory, this frame grabber supports pixel formats including Mono, Bayer, RGB, and YUV. It features 8 configurable GPIOs for system integration, supports jumbo frames up to 9 KB, and includes a full SDK for secondary development. With excellent thermal performance and compliance with CE, KC, and RoHS, the MV-GT1000 Series is ideal for demanding machine vision environments.

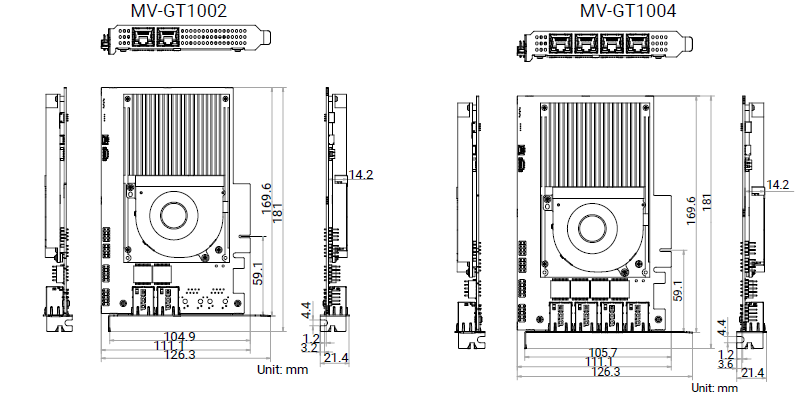

Dimension
| Interconnect | PCI-E gen2 × 8 |
| Standard | GigE Vision |
| Interface | RJ45 × 2 |
| RJ45 × 4 | |
| Camera quantity | 2 |
| 4 | |
| Certification | CE |
| KC | |
| RoHS | |
| Min Temperature | 0 °C |
| Max Temperature | 60 °C |
| MV-GT1002 | 2-channel frame grabber with dual RJ45 electrical ports for 10 GigE camera input |
| MV-GT1004 | 4-channel frame grabber with quad RJ45 electrical ports, supporting up to 4 cameras |
MV-GT1000 10 GigE Frame Grabber_datasheet Datasheet |
- Dual or quad-port GigE PoE support
- PCI Express Gen2 ×4 interface
- 800 MB/s sustained transmission bandwidth
- Supports jumbo frames up to 9 KB
- Compatible with 3U and 4U industrial chassis
- Plug-and-play with Windows 7/10/11 and Linux
- Natural cooling design, no fans required
- CE, RoHS, KC certified
| Interconnect | PCI-E gen2 × 4 |
| Standard | IEEE 802.3 |
| Interface | RJ45 × 2, RJ45 × 4 |
| Camera quantity | 2, 4 |
| Certification | CE, KC, RoHS |
| Min Temperature | 0 °C |
- Dual or Quad RJ45 Gigabit Ethernet Ports
- WX1860 Chip-Based PCIe Gen2 ×4 Interface
- Compatible with PCIe ×4, ×8, and ×16 slots
- Supports 2 or 4 GigE Industrial Cameras
- Up to 860 MB/s transmission bandwidth
- Jumbo Frame Support (up to 9.5 KB)
- Natural Cooling, Low Power Consumption
- CE and KC Certified
| Interconnect | PCI-E gen2 × 4 |
| Standard | IEEE 802.3 |
| Interface | RJ45 × 2, RJ45 × 4 |
| Camera quantity | 2, 4 |
| Certification | CE, KC |
| Min Temperature | 0 °C |
