MV-GT2000, 10GigE Ethernet Adaptor

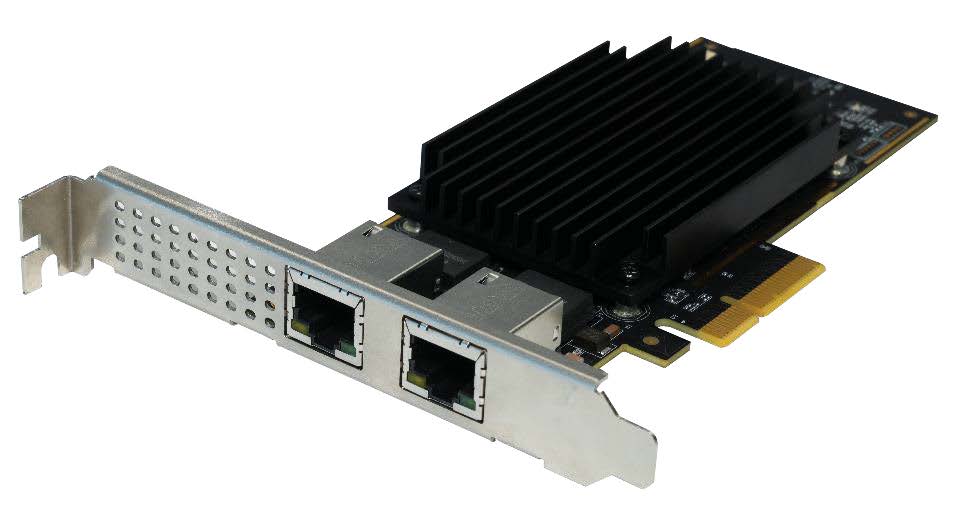

High-performance PCIe 10 GigE frame grabber card designed for fast image data transfer, supporting up to two industrial cameras with RJ45 connections. Compatible with Windows and Linux systems.
Features:
- PCIe Gen3 ×4 host interface
- Max bandwidth: 31.5 Gbps, sustained 20 Gbps
- Up to two independent RJ45 ports
- Supports 1 or 2 industrial 10 GigE cameras
- IEEE 802.3 Ethernet standard compliant
- Supports Jumbo frames (up to 9.7 KB)
- Operating temp: 0 °C to 60 °C
- Compatible with Windows 7/10/11 (64-bit) and Linux
- CE, RoHS, and KC certified
Manufacturer: HIKROBOT
Quote
Datasheet
Specifications
Models & Accessories
Downloads
MV-GT2000 - Specifications
| Interconnect | PCI-E gen3 × 4 |
| Standard | IEEE 802.3 |
| Interface | RJ45 × 1 |
| RJ45 × 2 | |
| Camera quantity | 1 |
| Certification | CE |
| KC | |
| RoHS |
MV-GT2000 - Models & Accessories
Models
| MV-GT2001 | Single RJ45 port, supports 1 industrial 10 GigE camera |
| MV-GT2002 | Dual RJ45 ports, supports 2 industrial 10 GigE cameras |
MV-GT2000 - Downloads
MV-GT2000 10 GigE Frame Grabber_datasheet Datasheet |
