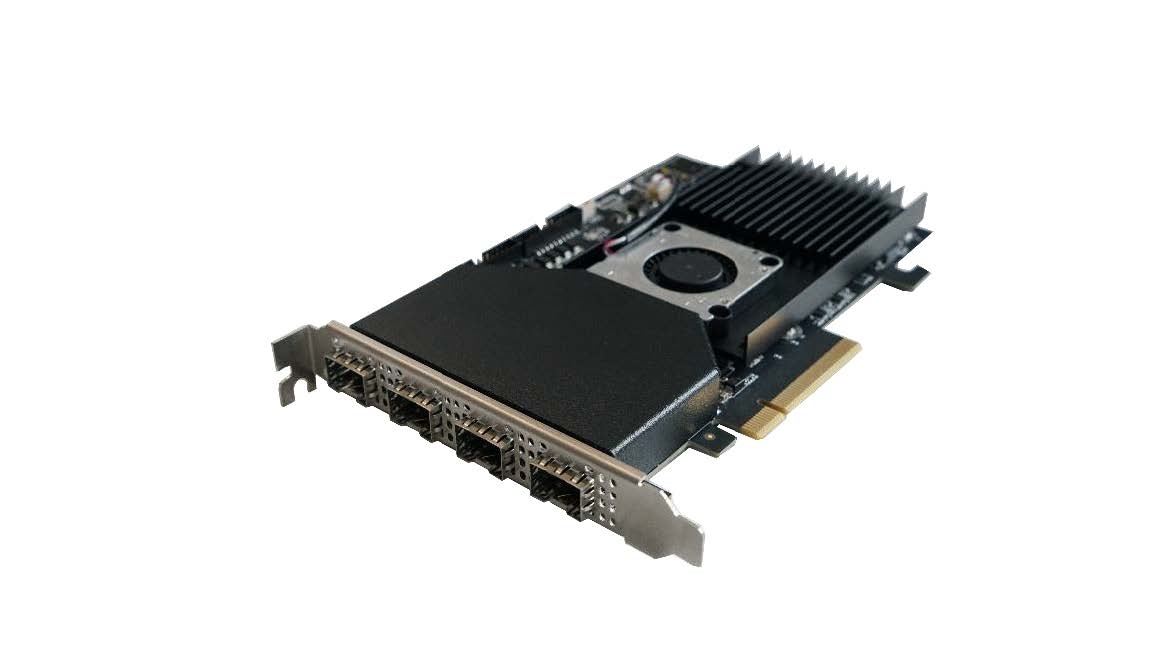

MV-GS1000F, XoF Fiber Port Frame Grabber
- XoFLink protocol-based fiber frame grabber
- Supports 2 or 4 cameras via pluggable SFP+ modules
- 2 GB onboard DDR3L memory
- PCI-E Gen2 ×8 host interface
- Up to 4000 MB/s peak bandwidth and 3200 MB/s sustained bandwidth
- Real-time status indicators for each stream
- Provides 24 I/O connectors: opto-isolated, RS-422, and TTL I/Os
- Full SDK support for system development
- Operating temperature range: 0 °C to 60 °C
- CE, KC, and RoHS certified
The MV-GS1000F Series is a fiber port frame grabber engineered for demanding line scan camera applications. It utilizes the XoFLink protocol and supports up to four cameras through pluggable SFP+ modules, making it a powerful solution for high-speed, fiber-optic-based image acquisition.
This frame grabber is equipped with a PCIe Gen2 ×8 host interface and an onboard 2 GB DDR3L memory, ensuring reliable and fast data throughput. It supports a peak transmission bandwidth of 4000 MB/s and sustained bandwidth of 3200 MB/s, making it ideal for industrial applications where high-speed and large-volume data capture is critical.
The MV-GS1000F includes multiple I/O interfaces with opto-isolated, TTL, and RS-422 inputs and outputs, allowing flexible integration with complex automation and inspection systems. The modular SFP+ interfaces support camera speeds up to 10 Gbps per channel and are compatible with XoF fiber port line scan cameras.
It also comes with a complete software development kit (SDK) for seamless secondary development, system integration, and real-time status monitoring through onboard indicators.

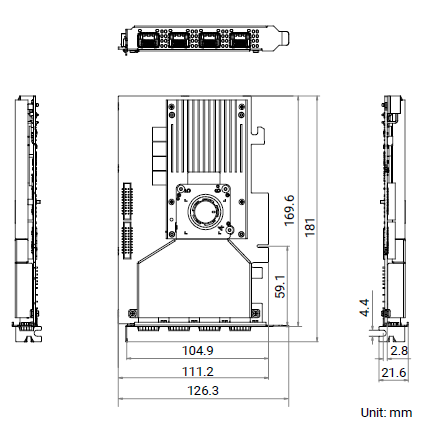

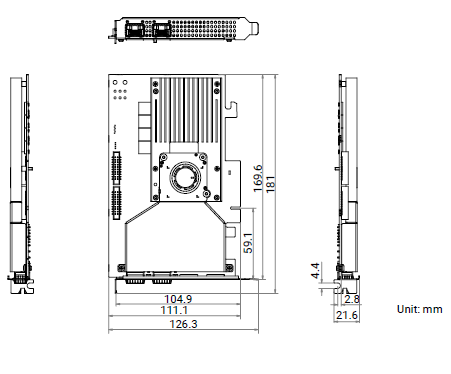

Dimension
| Interconnect | PCI-E gen2 × 8 |
| Standard | XoFLink |
| Interface | SFP+ × 2 |
| SFP+ × 4 | |
| Camera quantity | 2 |
| Certification | CE |
| KC | |
| RoHS |
| MV-GS1002F | Dual SFP+ ports, supports up to 2 XoF fiber line scan cameras, total bandwidth up to 20 Gbps |
| MV-GS1004F | Quad SFP+ ports, supports up to 4 XoF fiber line scan cameras, total bandwidth up to 27 Gbps |
MV-GS1000F Fiber Port Frame Grabber_datasheet Datasheet |
