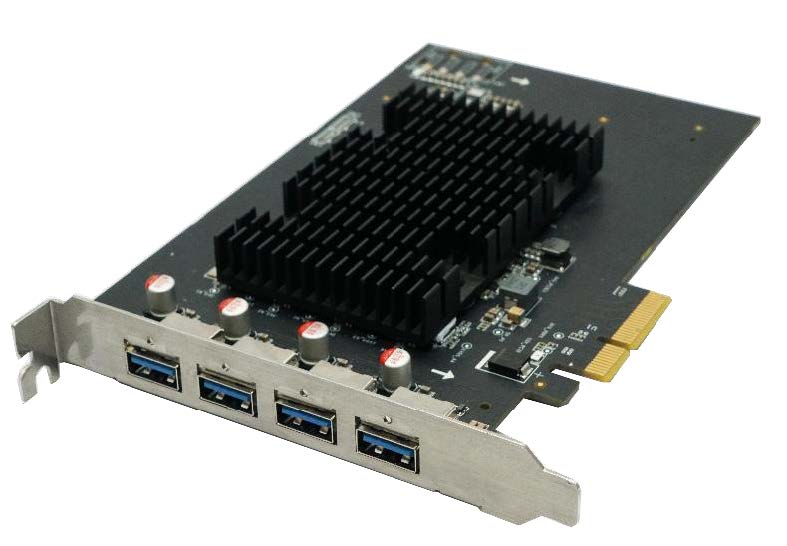

MV-GU2100, USB3.0 Frame Grabber
High-speed USB3.0 frame grabber card supporting up to 4 industrial cameras with 5 Gbps theoretical bandwidth and multi-format pixel compatibility.
Features:
- USB3.0 type-A interface with max. 5 Gbps theoretical transmission speed
- Supports 4 independent USB industrial cameras
- PCIe Gen2 x4 host interface
- Max. delivery bandwidth: 1720 MB/s; Sustained: 1600 MB/s
- Supports Mono, Bayer, YUV, and RGB pixel formats
- 4.5 W power output per channel
- Compatible with USB3.0, USB2.0, USB1.1
- Passive cooling design (no fan)
- Supported OS: Windows 7/10/11, Linux
- CE and RoHS compliant
Manufacturer: HIKROBOT
Quote
Datasheet
Specifications
Downloads
MV-GU2100 - Specifications
| Interconnect | PCI-E gen2 × 4 |
| Standard | USB 3.0 |
| Interface | USB3.0 type-A, female |
| Camera quantity | 4 |
| Certification | CE |
| RoHS |
MV-GU2100 - Downloads
MV-GU2100 USB3.0 Frame Grabber_datasheet Datasheet |
