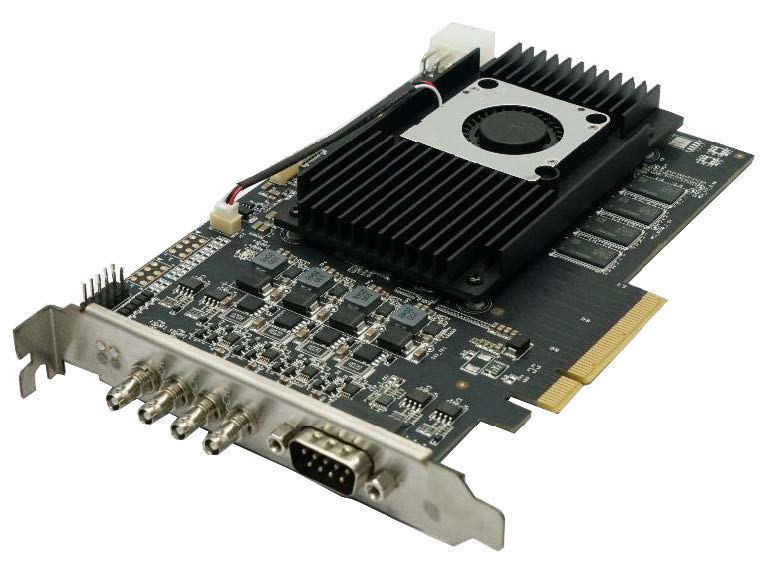

MV-GY1000IOL, 4-Channel CXP-12 Frame Grabber
High-performance 4-channel CXP-12 frame grabber designed for ultra-fast industrial imaging applications, with support for 12.5 Gbps per channel and PoCXP power delivery.
Features:
- Supports CoaXPress 2.1 protocol with up to 12.5 Gbps per channel
- Connects up to 4 cameras simultaneously
- PoCXP support, delivering up to 13 W per channel
- 4 GB DDR4 on-board memory for stable image buffering
- PCIe Gen3 x8 host interface with up to 7800 MB/s bandwidth
- Multiple GPIO lines for versatile I/O signaling
- GenICam compliant, supports Mono, Bayer, RGB formats
- Includes SDK for secondary development
- Wide input voltage support (3.3V to 24V) for I/O lines
- Certified: CE, RoHS, KC
- Designed for 0–60°C operating environments
Manufacturer: HIKROBOT
Quote
Datasheet
Specifications
Downloads
MV-GY1000IOL - Specifications
| Interconnect | PCI-E gen3 × 8 |
| Standard | CoaXPress 2.1 |
| Interface | HD-BNC × 4 |
| Camera quantity | 4 |
| Certification | CE |
| KC |
MV-GY1000IOL - Downloads
MV-GY1000IOL CoaXPress Frame Grabber_datasheet Datasheet |
