MV-GE2000L, GigE NIC
- Supports IEEE 802.3 standard (Ethernet communication protocol)
- Equipped with multiple independent RJ45 ports
- Suitable for installation in 2U rackmount chassis
- Compatible with PCIe Gen2 x4 interface
- Supports 10/100/1000 Mbps Ethernet speeds
- Designed for stable, high-speed data transmission in machine vision systems
The MV-GE2000L series is a high-speed PCI Express Gigabit Ethernet network interface card designed specifically for machine vision applications. Built around a reliable Intel® chipset, this NIC offers robust performance and compatibility with multiple PCIe slots, including x4, x8, and x16.
It supports the IEEE 802.3 standard and integrates either two or four independent RJ45 ports, making it ideal for systems requiring multi-camera setups or high-bandwidth data transmission. The card supports a maximum data throughput of 860 MB/s and can stably sustain 800 MB/s, enabling reliable video streaming and image acquisition.
With a compact design and natural cooling architecture (fanless with heat sinks), the MV-GE2000L series is optimized for use in 2U chassis and environments where thermal efficiency and space are limited. It supports jumbo frames (up to 9 KB), ensuring efficient handling of large image data packets typical in vision systems.

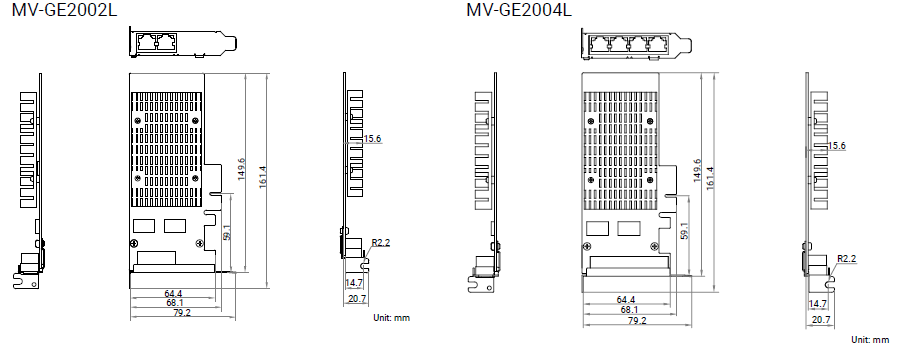

Dimension
| Interconnect | PCI-E gen2 × 4 |
| Standard | IEEE 802.3 |
| Interface | RJ45 × 2 |
| RJ45 × 4 | |
| Camera quantity | 2 |
| 4 | |
| Certification | CE |
| KC | |
| RoHS |
| MV-GE2002L | 2-port GigE NIC, supports up to 2 GigE cameras |
| MV-GE2004L | 4-port GigE NIC, supports up to 4 GigE cameras |
MV-GE2000L V2.0 GigE NIC_datasheet Datasheet |
- Dual or quad-port GigE PoE support
- PCI Express Gen2 ×4 interface
- 800 MB/s sustained transmission bandwidth
- Supports jumbo frames up to 9 KB
- Compatible with 3U and 4U industrial chassis
- Plug-and-play with Windows 7/10/11 and Linux
- Natural cooling design, no fans required
- CE, RoHS, KC certified
| Interconnect | PCI-E gen2 × 4 |
| Standard | IEEE 802.3 |
| Interface | RJ45 × 2, RJ45 × 4 |
| Camera quantity | 2, 4 |
| Certification | CE, KC, RoHS |
| Min Temperature | 0 °C |
- Dual or Quad RJ45 Gigabit Ethernet Ports
- WX1860 Chip-Based PCIe Gen2 ×4 Interface
- Compatible with PCIe ×4, ×8, and ×16 slots
- Supports 2 or 4 GigE Industrial Cameras
- Up to 860 MB/s transmission bandwidth
- Jumbo Frame Support (up to 9.5 KB)
- Natural Cooling, Low Power Consumption
- CE and KC Certified
| Interconnect | PCI-E gen2 × 4 |
| Standard | IEEE 802.3 |
| Interface | RJ45 × 2, RJ45 × 4 |
| Camera quantity | 2, 4 |
| Certification | CE, KC |
| Min Temperature | 0 °C |
