DV301, Cable Actuated Sensor
- Draw wire sensor with dual output: position (potentiometer) and velocity (DC tachometer)
- Stroke ranges: 2 to 100 inches
- Infinite resolution and high repeatability (±0.02%)
- Position accuracy: ±0.10% to ±0.25% FS
- Velocity linearity: ±0.10%
- Self-generating tachometer output, no excitation required
- Anodized aluminum housing (IP50 / NEMA 1)
- Operating temperature: -40°C to +90°C
- Compact 2 lb. enclosure
The DV301 is a precision cable-actuated (draw wire) sensor that combines position and velocity measurement in a single compact unit. It uses a stainless-steel measuring cable to convert linear motion into electrical signals through two independent elements: a plastic-hybrid potentiometer for position and a DC tachometer for velocity.
Designed for high-performance applications, the DV301 delivers near-infinite resolution, excellent repeatability, and fast dynamic response. Stroke ranges are available from 2 to 100 inches, with position accuracy up to ±0.10% full scale and velocity output linearity of ±0.10%. The velocity signal is self-powered, eliminating the need for an external power source.
Its powder-coated and anodized aluminum housing is rated IP50 for indoor industrial use and is engineered for reliability in automation, feedback control, and testing environments.

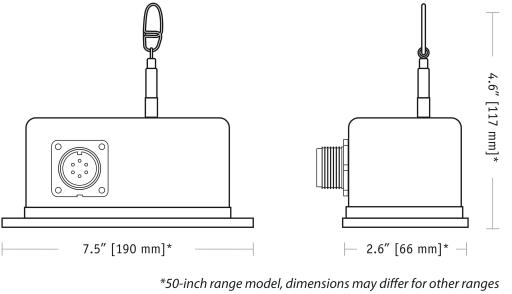

Dimensions
| Type | Draw Wire |
| Full Scale | 50.8 mm [2"] |
| 127 mm [5"] | |
| 254 mm [10"] | |
| 381 mm [15"] | |
| 508 mm [20"] | |
| 635 mm [25"] | |
| 762 mm [30"] | |
| 1016 mm [40"] | |
| 1270 mm [50"] | |
| 1524 mm [60"] | |
| 1905 mm [75"] | |
| 2540 mm [100"] | |
| Output | Potentiometric |
| Non-Linearity | ±0.25 % FS |
| IP Rating | IP50 |
| Min Temperature | -40 °C |
| Max Temperature | 90 °C |
| DV301-0100-111-1110 | 100 in stroke, standard build |
| DV301‑0075‑111‑1110 | 75 in stroke |
| DV301‑0060‑111‑1110 | 60 in stroke |
