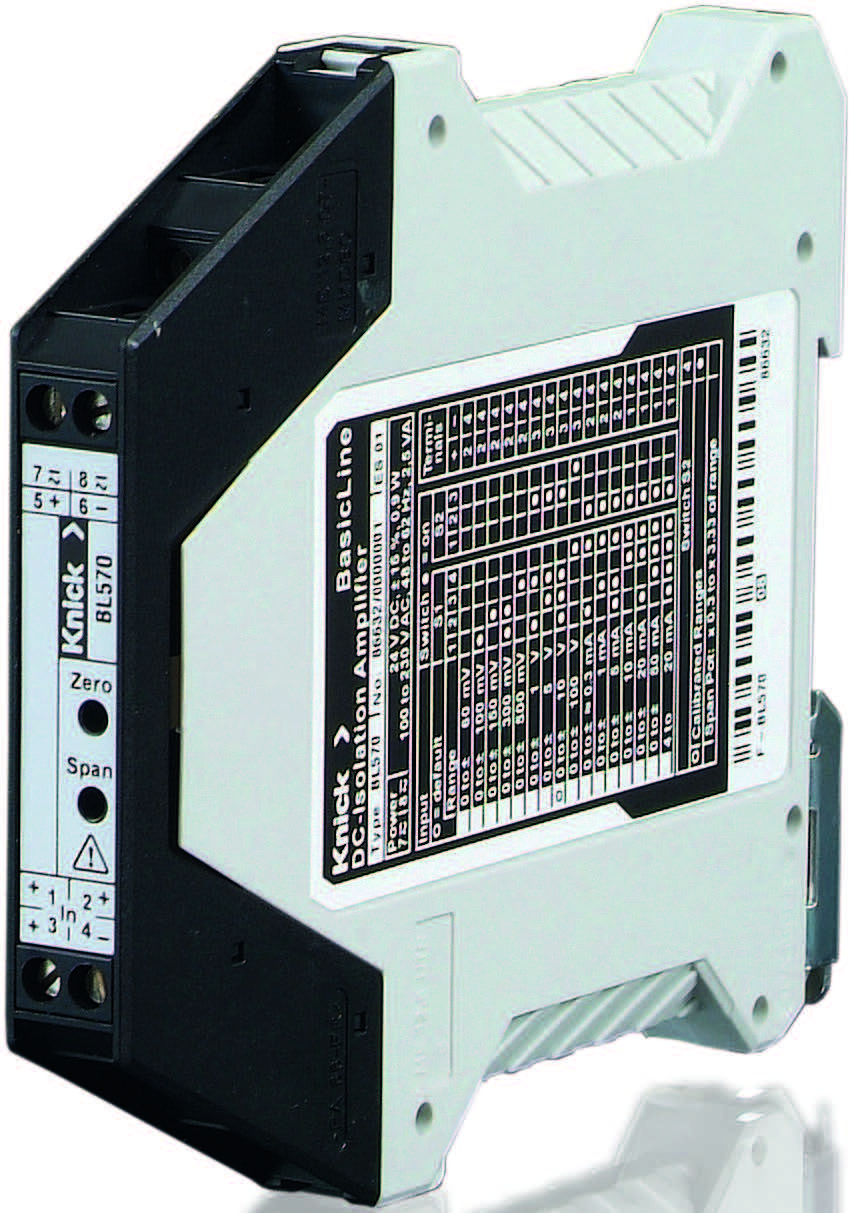

BasicLine BL 570, DIN Rail Universal Isolators

Universal DIN-rail isolator for DC voltage and current signals with wide input ranges, calibrated switching, and galvanic 3-port isolation.

Features:

Universal input ranges: ±20 mV to ±200 V or ±0.1 mA to ±100 mA
Calibrated steps for both current and voltage (no readjustment required)
Output options: 0–20 mA, 4–20 mA, ±20 mA, 0–5 V, 0–10 V, ±5 V, ±10 V, 1–5 V, 2–10 V
Adjustable output offset (–100 % to +100 % span)
Galvanic 3-port isolation (input/output/power supply), 1.5 kV test voltage
Cutoff frequency > 100 Hz
Gain error < 0.25 % of full scale
Power supply options: 24 V DC or 100–230 V AC (48–62 Hz)
Modular DIN-rail housing, 12.5 mm width

Manufacturer: Knick Interface
