BMS600600, Force Platform
- Mid-sized platform (600 x 600 mm) ideal for gait, running, jumping, and cutting analysis
- Measures six channels: Fx, Fy, Fz, Mx, My, Mz with <0.5% hysteresis
- High accuracy (±0.5% of applied load) and low crosstalk (±0.2%)
- Available models with capacities up to 4000 lb vertical force
- Compatible with OPTIMA amplifier for digital output via USB
- ASTM F3109-23 compliant for force plate performance verification
- Modular rail system and filler plates for flexible lab configurations

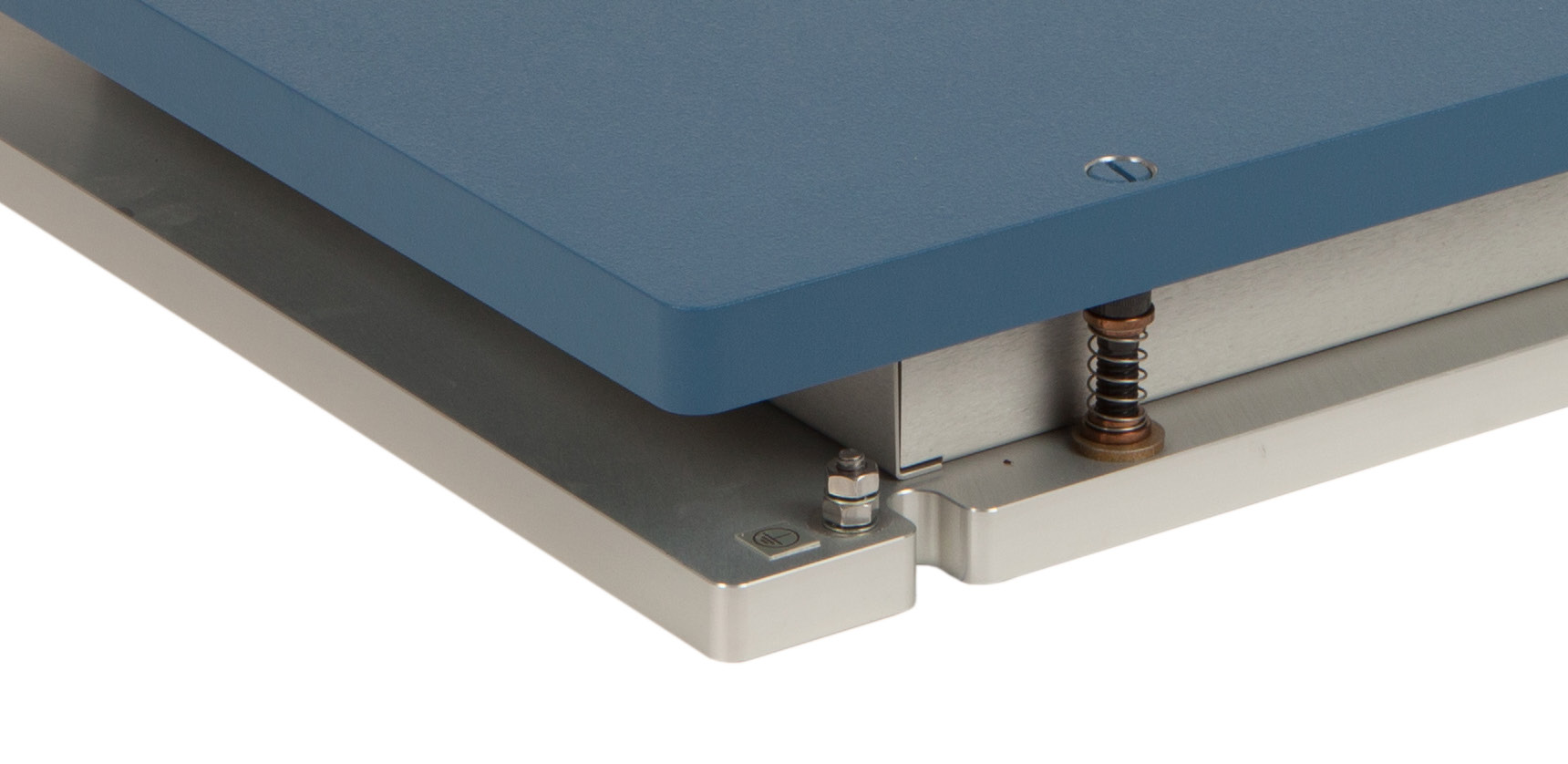

The AMTI BMS600600 is a mid-sized, high-performance force platform designed for biomechanical analysis of human movement. With a sensing area of 600 x 600 mm and a rugged composite top plate, it provides precise 6-axis force and moment measurements for applications ranging from gait analysis to jumping, cutting, and running dynamics.
Part of AMTI’s industry-leading OPTIMA Biomechanics Measurement Series (BMS), the BMS600600 delivers exceptional accuracy (±0.5% of applied load), low hysteresis, and outstanding center-of-pressure (COP) precision. Built-in strain gauge bridges measure forces along all three axes as well as moments (Mx, My, Mz), with typical crosstalk of only ±0.2% and COP accuracy within 0.5 mm.

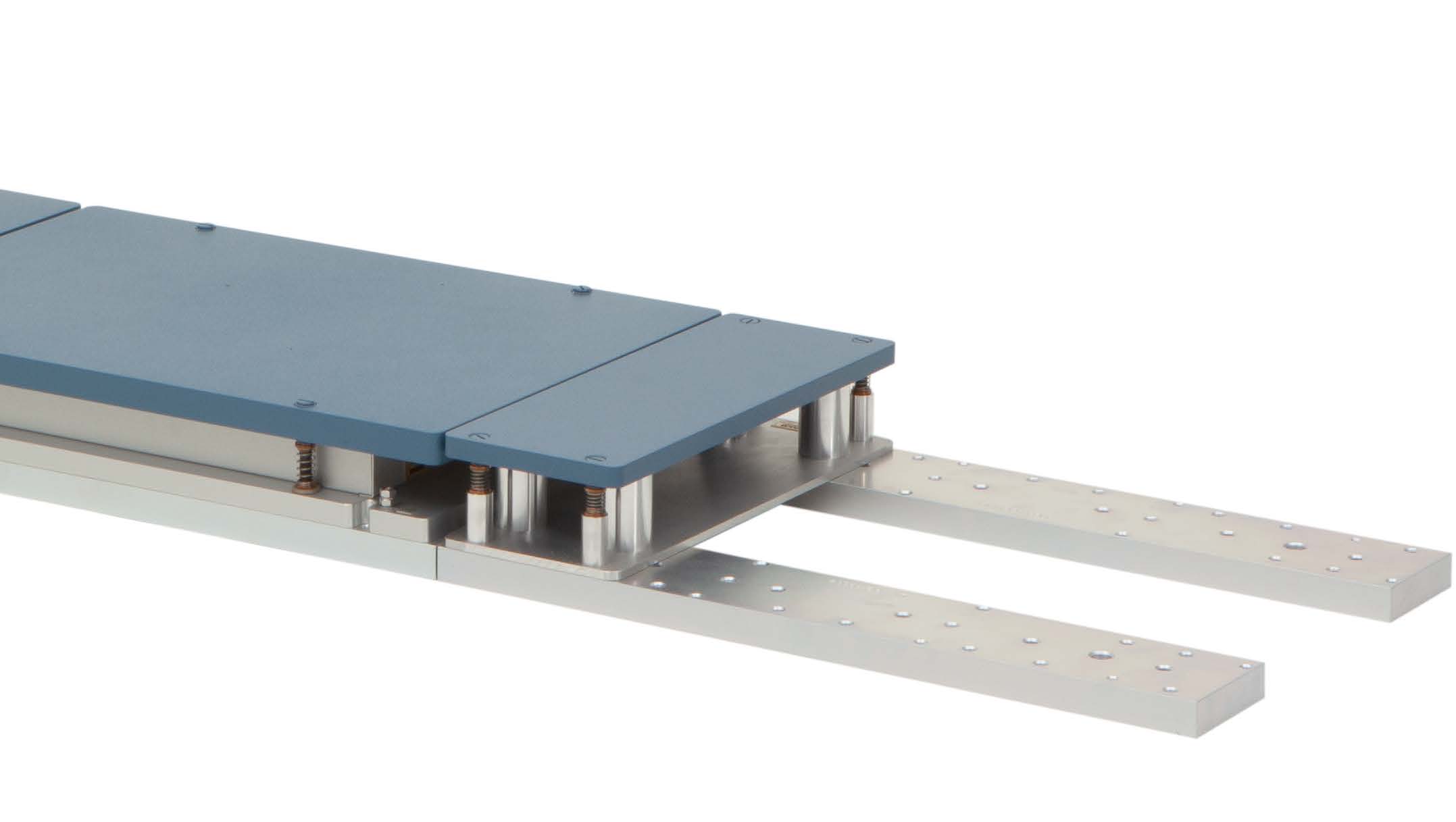

Each system includes the BMS600600 force plate, OPTIMA external signal conditioner (OPT-SC), a 9 m transducer cable, and mounting kit. The platform supports analog and USB digital outputs, and is fully compatible with AMTI’s Modular Rail System (MRS) for easy lab reconfiguration and long-term scalability.
This model is ASTM F3109-23 certified, ensuring it meets strict standards for performance verification in clinical and research-grade motion labs. It's widely used in biomechanics, rehabilitation, and sports performance labs worldwide.
| Full Scale (Fz) | 1000 lbs |
| 2000 lbs | |
| 4000 lbs | |
| Fz Natural Frequency | 790 Hz |
| 800 Hz | |
| 810 Hz | |
| Top Plate Material | Composite |
| Power Supply | USB Powered |
| Min Temperature | -17 °C |
| Max Temperature | 52 °C |
| BMS600600-1K | Fz Capacity: 4450 N (1000 lbs) |
| BMS600600-2K | Fz Capacity: 8900 N (2000 lbs) |
| BMS600600-4K | Fz Capacity: 17800 N (4000 lbs) |
BMS600600 Datasheet Datasheet |
- Large surface: 600 x 900 mm for running, jumping, cutting, and weightlifting setups
- Six channels: Fx, Fy, Fz, Mx, My, Mz with ±0.5% measurement accuracy and <0.5% hysteresis
- Low crosstalk: ±0.2% of applied load with center of pressure accuracy <0.5 mm
- High natural frequency to capture fast transients in athletic movements
- ASTM F3109-23 compliant multi-axis force plate performance verification
- Composite top plate with through-top mounting access
- Works with OPTIMA signal conditioner for 6 analog outputs and USB digital integration
- Modular Rail System and filler plates for clean installation and easy reconfiguration
| Full Scale (Fz) | 1000 lbs, 2000 lbs, 4000 lbs |
| Fz Natural Frequency | 430 Hz, 440 Hz |
| Top Plate Material | Composite |
| Power Supply | USB Powered |
| Min Temperature | -17 °C |
| Max Temperature | 52 °C |
- Large 600 x 1200 mm target area, ideal for running, pitching, and long jump applications
- Six-channel force and moment measurement: Fx, Fy, Fz, Mx, My, Mz
- Widely used in AMTI’s Instrumented Pitching Mound and track installations
- High accuracy (±0.5% of applied load) with <0.5 mm center of pressure precision
- ASTM F3109-23 compliant for force plate verification standards
- Excellent repeatability across the entire surface with AMTI’s OPTIMA technology
- Supports dual-plate or extended setups for advanced performance testing
- Includes OPTIMA amplifier for digital USB data output
| Full Scale (Fz) | 1000 lbs, 2000 lbs, 4000 lbs |
| Fz Natural Frequency | 260 Hz, 270 Hz, 280 Hz |
| Dimensions | 600 x 1200 x 102 mm |
| Weight | 85 lbs |
| Top Plate Material | Composite |
| Power Supply | USB Powered |
- Large 900 x 900 mm surface, ideal for sports science and performance labs
- Six-axis force and moment measurement: Fx, Fy, Fz, Mx, My, Mz
- High accuracy (±0.5% of applied load) and <0.5 mm center of pressure precision
- ASTM F3109-23 compliant for multi-axis force plate verification
- Advanced OPTIMA technology ensures low crosstalk (±0.2%) and <0.5% hysteresis
- Suitable for integration in courts, tracks, and strength facilities
- Digital USB output via OPTIMA amplifier
| Full Scale (Fz) | 1000 lbs, 2000 lbs, 4000 lbs |
| Fz Natural Frequency | 360 Hz, 390 Hz, 400 Hz |
| Dimensions | 900 x 900 x 102 mm |
| Weight | 90 lbs |
| Top Plate Material | Composite |
| Power Supply | USB Powered |
