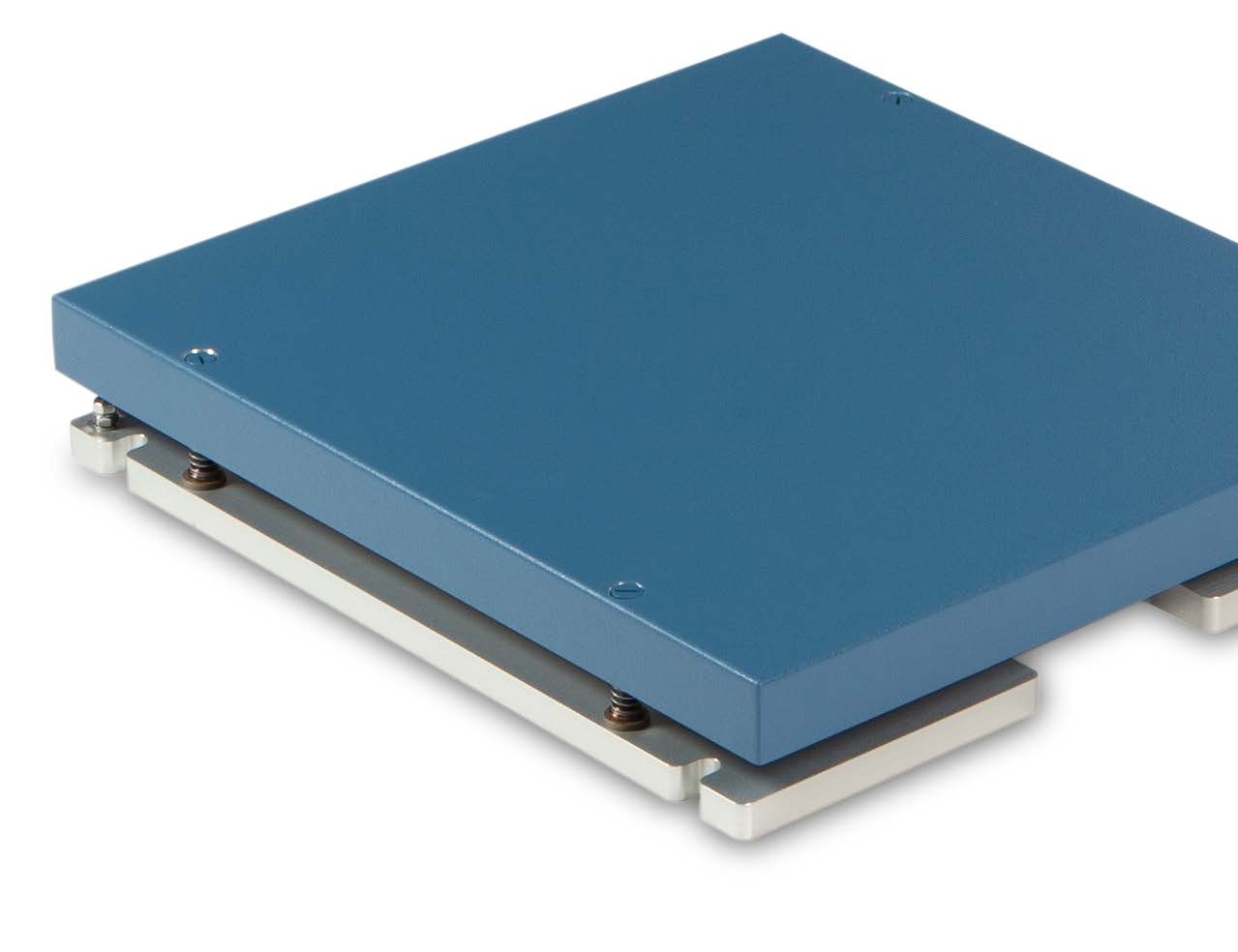

BMS600900, Force Platform
Large-area force platform for high-impact sports and performance testing. Measures 6 components with high accuracy and natural frequency, ideal for dual-plate jump and drop landing analysis.
Features:
- Large surface: 600 x 900 mm for running, jumping, cutting, and weightlifting setups
- Six channels: Fx, Fy, Fz, Mx, My, Mz with ±0.5% measurement accuracy and <0.5% hysteresis
- Low crosstalk: ±0.2% of applied load with center of pressure accuracy <0.5 mm
- High natural frequency to capture fast transients in athletic movements
- ASTM F3109-23 compliant multi-axis force plate performance verification

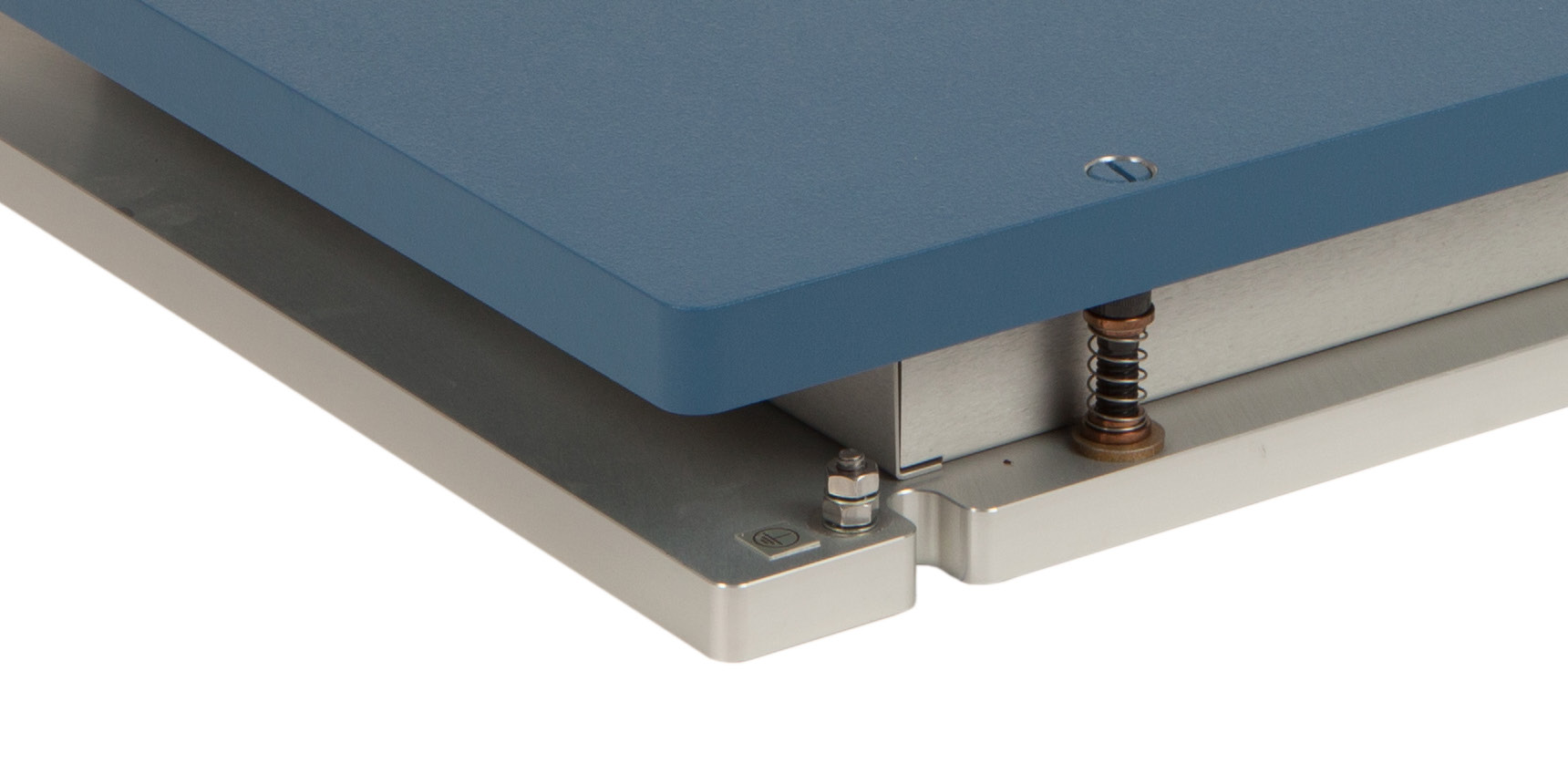

- Composite top plate with through-top mounting access
- Works with OPTIMA signal conditioner for 6 analog outputs and USB digital integration

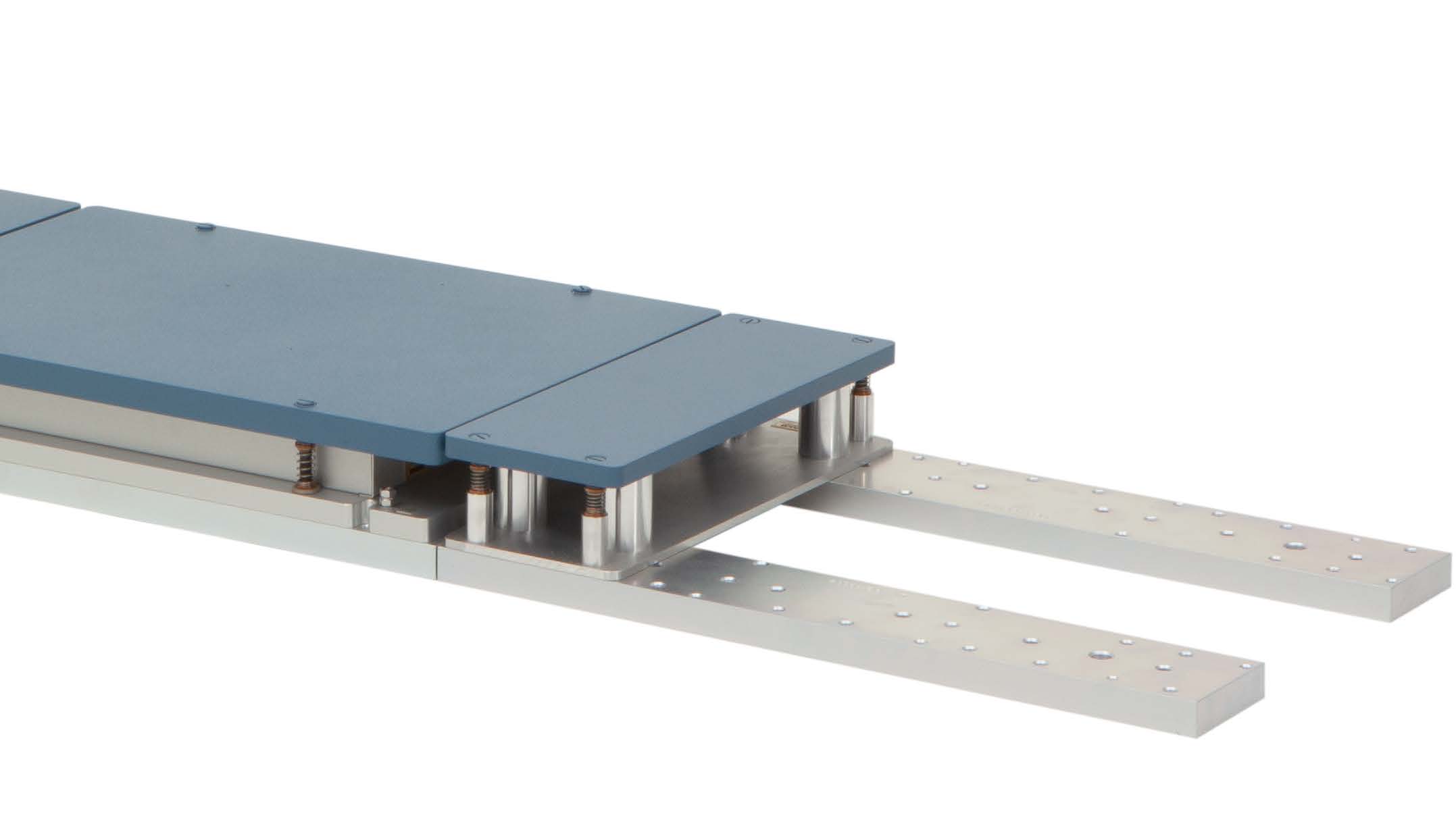

- Modular Rail System and filler plates for clean installation and easy reconfiguration
Manufacturer: Advanced Mechanical Technology Inc. (AMTI)
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Similar Products
BMS600900 - Specifications
| Full Scale (Fz) | 1000 lbs |
| 2000 lbs | |
| 4000 lbs | |
| Fz Natural Frequency | 430 Hz |
| 440 Hz | |
| Top Plate Material | Composite |
| Power Supply | USB Powered |
| Min Temperature | -17 °C |
| Max Temperature | 52 °C |
BMS600900 - Models & Accessories
Models
| BMS600900-1K | Fz 4450 N (1000 lb), Fx Fy 2225 N, Mx 2030 Nm, My 1400 Nm, Mz 1000 Nm |
| BMS600900-2K | Fz 8900 N (2000 lb), Fx Fy 4450 N, Mx 4070 Nm, My 2700 Nm, Mz 2000 Nm |
| BMS600900-4K | Fz 17800 N (4000 lb), Fx Fy 8900 N, Mx 8140 Nm, My 5400 Nm, Mz 4100 Nm |
BMS600900 - Downloads
BMS600900 datasheet Datasheet |
BMS600900 - Similar Products
- Large 900 x 900 mm surface, ideal for sports science and performance labs
- Six-axis force and moment measurement: Fx, Fy, Fz, Mx, My, Mz
- High accuracy (±0.5% of applied load) and <0.5 mm center of pressure precision
- ASTM F3109-23 compliant for multi-axis force plate verification
- Advanced OPTIMA technology ensures low crosstalk (±0.2%) and <0.5% hysteresis
- Suitable for integration in courts, tracks, and strength facilities
- Digital USB output via OPTIMA amplifier
| Full Scale (Fz) | 1000 lbs, 2000 lbs, 4000 lbs |
| Fz Natural Frequency | 360 Hz, 390 Hz, 400 Hz |
| Dimensions | 900 x 900 x 102 mm |
| Weight | 90 lbs |
| Top Plate Material | Composite |
| Power Supply | USB Powered |
- Mid-sized platform (600 x 600 mm) ideal for gait, running, jumping, and cutting analysis
- Measures six channels: Fx, Fy, Fz, Mx, My, Mz with <0.5% hysteresis
- High accuracy (±0.5% of applied load) and low crosstalk (±0.2%)
- Available models with capacities up to 4000 lb vertical force
- Compatible with OPTIMA amplifier for digital output via USB
- ASTM F3109-23 compliant for force plate performance verification
- Modular rail system and filler plates for flexible lab configurations
| Full Scale (Fz) | 1000 lbs, 2000 lbs, 4000 lbs |
| Fz Natural Frequency | 790 Hz, 800 Hz, 810 Hz |
| Top Plate Material | Composite |
| Power Supply | USB Powered |
| Min Temperature | -17 °C |
| Max Temperature | 52 °C |
- Large 600 x 1200 mm target area, ideal for running, pitching, and long jump applications
- Six-channel force and moment measurement: Fx, Fy, Fz, Mx, My, Mz
- Widely used in AMTI’s Instrumented Pitching Mound and track installations
- High accuracy (±0.5% of applied load) with <0.5 mm center of pressure precision
- ASTM F3109-23 compliant for force plate verification standards
- Excellent repeatability across the entire surface with AMTI’s OPTIMA technology
- Supports dual-plate or extended setups for advanced performance testing
- Includes OPTIMA amplifier for digital USB data output
| Full Scale (Fz) | 1000 lbs, 2000 lbs, 4000 lbs |
| Fz Natural Frequency | 260 Hz, 270 Hz, 280 Hz |
| Dimensions | 600 x 1200 x 102 mm |
| Weight | 85 lbs |
| Top Plate Material | Composite |
| Power Supply | USB Powered |
- [Discontinued]
- Platform with a large target area
- Perfect for sports performance analysis
| Full Scale (Fz) | 1000 lbs, 2000 lbs, 4000 lbs |
| Fz Natural Frequency | 350 Hz, 390 Hz, 420 Hz |
| Non-Linearity | ± 0.2 % FS |
| Resolution | 12-bit, 14-bit |
| Output | ± 10 V DC |
| Dimensions | 1200 x 1200 x 108 mm |
- [Discontinued] replaced by the BMS6001200
- Long target area
- Designed for sports performance analysis; long jumping
| Full Scale (Fz) | 1000 lbs, 2000 lbs, 4000 lbs |
| Fz Natural Frequency | 390 Hz, 410 Hz, 500 Hz |
| Non-Linearity | ± 0.2 % FS |
| Resolution | 12-bit, 14-bit |
| Output | ± 10 V DC |
| Dimensions | 600 x 1200 x 102 mm |
