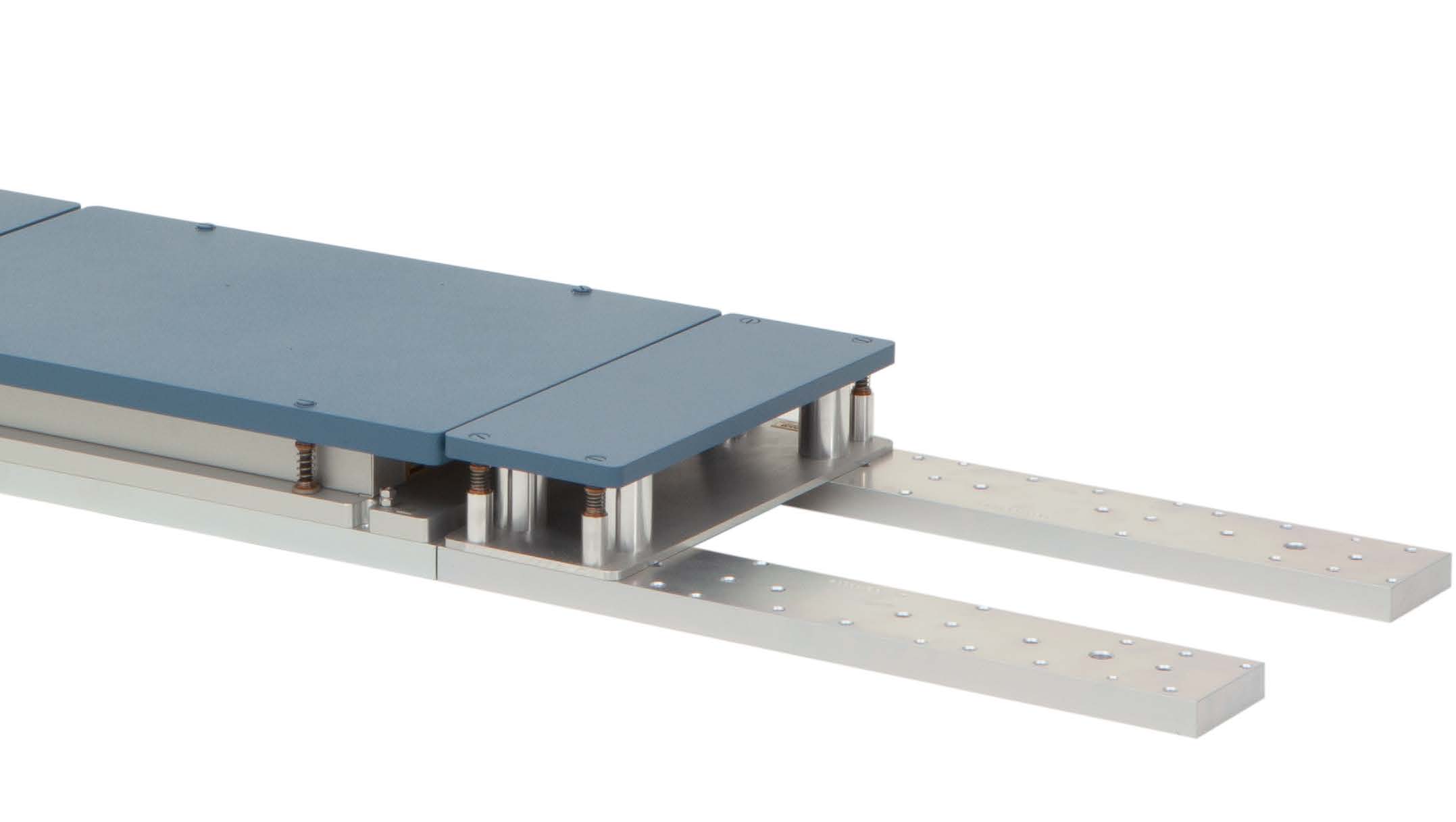

BMS6001200, Force Platform

The BMS6001200 is a long-format force platform from AMTI’s OPTIMA Biomechanics Measurement Series, designed for sports performance testing and dynamic athletic assessments requiring extended movement areas.

Features:

Large 600 x 1200 mm target area, ideal for running, pitching, and long jump applications
Six-channel force and moment measurement: Fx, Fy, Fz, Mx, My, Mz
Widely used in AMTI’s Instrumented Pitching Mound and track installations
High accuracy (±0.5% of applied load) with <0.5 mm center of pressure precision
ASTM F3109-23 compliant for force plate verification standards
Excellent repeatability across the entire surface with AMTI’s OPTIMA technology
Supports dual-plate or extended setups for advanced performance testing
Includes OPTIMA amplifier for digital USB data output

Manufacturer: Advanced Mechanical Technology Inc. (AMTI)

Quote

Datasheet

Specifications

Models & Accessories

Downloads

BMS6001200 - Specifications

Full Scale (Fz)	1000 lbs
	2000 lbs
	4000 lbs
Fz Natural Frequency	260 Hz
	270 Hz
	280 Hz
Dimensions	600 x 1200 x 102 mm
Weight	85 lbs
Top Plate Material	Composite
Power Supply	USB Powered
Min Temperature	-17 °C
Max Temperature	52 °C

BMS6001200 - Models & Accessories

Models

BMS6001200-1K	1000 lb vertical force capacity
BMS6001200-2K	2000 lb vertical force capacity
BMS6001200-4K	4000 lb vertical force capacity

BMS6001200 - Downloads

AMTI_BMS6001200_ProductSheet

Datasheet
