TFD-4000, Hall-Effect Linear Position Sensor
- Non-contact Hall-effect technology (wear-free)
- Measuring ranges from 5 mm up to 50 mm
- Two-part, mechanically decoupled design
- Ratiometric output 5 – 95 % Ub (0.25 – 4.75 V)
- Resolution up to 12 bits
- High protection class: IP67 / IP68 / IP69
- Operating temperature −40 °C to +125 °C
- Single- and dual-channel configurations
- Lightweight and extremely flat design
- Optimized for compact or mobile applications

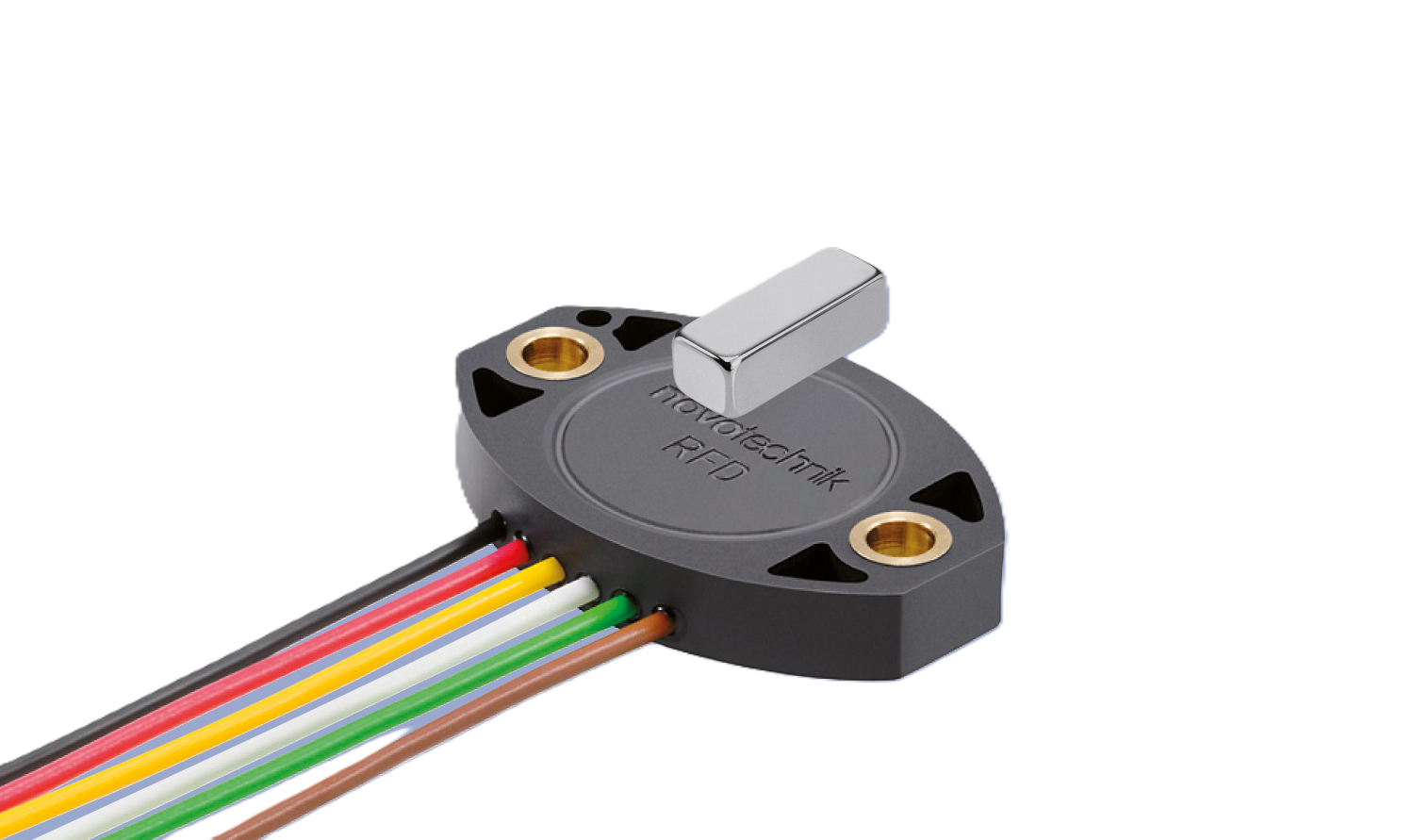

The TFD-4000 Series NOVOHALL Transducer provides precise, contactless linear position feedback using Hall-effect magnetic field sensing. Its compact, flat construction and two-piece design (sensor and magnetic marker) make it ideal for applications with limited installation space or where mechanical decoupling is required.
Using a ratiometric output (5 % to 95 % of supply voltage), the TFD-4000 ensures stable signal performance with minimal drift. It features a rugged plastic housing rated up to IP69, allowing reliable use in industrial, mobile, or outdoor environments exposed to dust, moisture, vibration, and oil.
With a resolution up to 12 bits, mechanically unlimited life, and available redundant channel options, this sensor offers long-term precision and safety in position and angle measurement. Optional position markers and custom configurations are available to suit specific integration needs.
| Type | Magnetic Scale |
| Full Scale | 8 mm |
| 14 mm | |
| 24 mm | |
| Output | 0 - 5 V DC |
| Non-Linearity | ±0.10 % FS |
| IP Rating | IP67 |
| IP68 | |
| IP69K | |
| Min Temperature | -40 °C |
| Max Temperature | 125 °C |
| TFD-4021-414-401 | Single-channel, 14 mm range, ratiometric 0.25–4.75 V output, IP69 protection. |
| TFD-4021-424-402 | Dual-channel, 24 mm range, ratiometric output, redundant design for increased reliability. |
| TFD-4021-414-403 | Single-channel, 14 mm range, optimized for compact installations in mobile machinery. |
| TFD-4021-424-404 | Dual-channel, 24 mm range, high-resolution 12-bit output, vibration-resistant housing. |
TFD-4000 Datasheet Datasheet |
