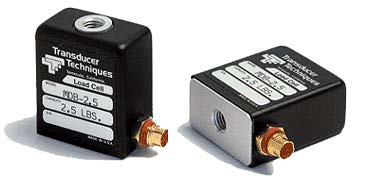

MDB, Ultra Precision
The MDB Series Load Cells was designed to help fill the growing need for a greater selection of high accuracy load cells for use in space limited applications. The anodized aluminum MDB's are compliant in tension and compression, therefore, a...
Features:
- Tension & Compression
- Accuracy: ±0.15% R.O.
- Length: 29.5mm
- Width: 16.5mm
- Height: 34.9mm
- Connection: 3m Integral Cable
- Anodized Aluminum
Manufacturer: Transducer Techniques
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
MDB - Description
The MDB Series Load Cells was designed to help fill the growing need for a greater selection of high accuracy load cells for use in space limited applications. The anodized aluminum MDB's are compliant in tension and compression, therefore, a good choice for in line through zero applications, as well as single direction tension or compression.
MDB - Specifications
| Type | Thru-Hole |
| Application | Tension & Compression |
| Full Scale | 2.5 lbs |
| 5 lbs | |
| 10 lbs | |
| 25 lbs | |
| 50 lbs | |
| 75 lbs | |
| 100 lbs | |
| Output | 2 mV/V |
| Precision | ±0.15 % FS |
| Excitation | 10 V DC |
| Min Temperature | -54 °C |
| Max Temperature | 93 °C |
MDB - Models & Accessories
Models
| MDB-100 | |
| MDB-75 | |
| MDB-50 | |
| MDB-25 | |
| MDB-10 | |
| MDB-5 | |
| MDB-2.5 | |
| MDB |
MDB - Downloads
MDB Load Cell Mini Datasheet |
