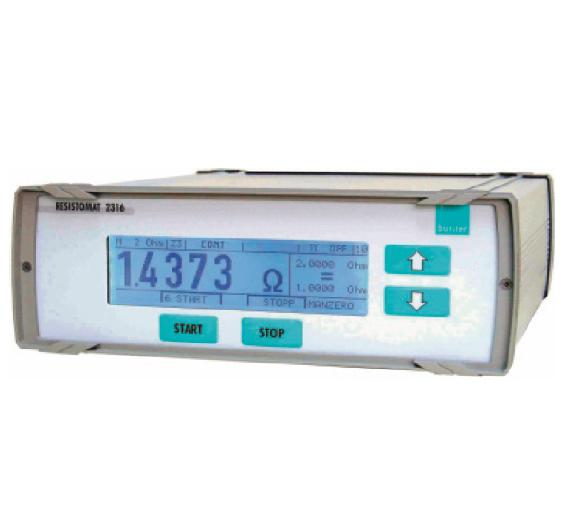

2316, RESISTOMAT® Milli-Ohmmeter
The device works according to the proven 4-wire measurement method which eliminates errors caused by test lead and contact resistances. Thermo voltages that might be in the measurement circle would be compensated automatically by this...
Features:
- Measuring ranges from 2 mΩ to 200 kΩ
- Resolution up to 0.1 μΩ
- Accuracy 0.03 % Rdg.
- Autorange
- Temperature compensation for all materials
- Thermal e.m.f. compensation
- Input voltage protection up to 400 Vrms
- RS232 and PLC interface standard (USB and Ethernet option)
Manufacturer: Burster Praezisionsmesstechnik Gmbh
Quote
Datasheet
Description
Specifications
Applications
Models & Accessories
Downloads
Similar Products
2316 - Description
The device works according to the proven 4-wire measurement method which eliminates errors caused by test lead and contact resistances. Thermo voltages that might be in the measurement circle would be compensated automatically by this measurement method. The control of the measurement leads is done with an integrated cable fraction detection.
A temperature compensation for any given sample material such as copper, aluminium, tungsten, etc. is self-evident. The temperature measurement is done by an external Pt 100 sensor or by an external infrared measurement device (ref. to accessories).
A special measurement voltage input protection was developed for testing large inductive samples so that voltage peaks do not cause permanent damage while pinching off the sample.
16 device settings such as the measurement range, limit values, temperature coeffi cient, etc. can be saved in order to test samples with different parameters in an automatic measurement system. All device specific settings are shown to the user via display.
Calling up the settings is done via keypad or via PLC interface with a bit pattern (4-bits). It goes without saying that all device settings may also be effected via the RS232 interface.
The high-contrast LCD display with backlight assures very good reading of the measurement value in dark as well as bright spaces.
A temperature compensation for any given sample material such as copper, aluminium, tungsten, etc. is self-evident. The temperature measurement is done by an external Pt 100 sensor or by an external infrared measurement device (ref. to accessories).
A special measurement voltage input protection was developed for testing large inductive samples so that voltage peaks do not cause permanent damage while pinching off the sample.
16 device settings such as the measurement range, limit values, temperature coeffi cient, etc. can be saved in order to test samples with different parameters in an automatic measurement system. All device specific settings are shown to the user via display.
Calling up the settings is done via keypad or via PLC interface with a bit pattern (4-bits). It goes without saying that all device settings may also be effected via the RS232 interface.
The high-contrast LCD display with backlight assures very good reading of the measurement value in dark as well as bright spaces.
2316 - Specifications
| Range | 2 mΩ |
| 20 mΩ | |
| 200 mΩ | |
| 2 Ω | |
| 20 Ω | |
| 200 Ω | |
| 2 kΩ | |
| 20 kΩ | |
| 200 kΩ | |
| Error | ≤ 0.03 % |
| Interface | RS-232 |
| USB | |
| Ethernet | |
| Digital I/O | |
| PLC | |
| Supply | 110 V AC |
| 230 V AC |
2316 - Applications
Fast and accurate measurements of the smallest resistance values are possible with the milliohmmeter RESISTOMAT® model 2316. Due to the rugged aluminium injection moulding desktop housing with membrane keypad it is suitable for use in laboratory and industrial environment likewise.
Wires and coils can be measured with temperature compensation. The temperature of the sample is measured with a Pt 100 or pyrometer and the resistance is then corrected to the equivalent at e.g. 20 °C (adjustable) in the instrument.
The application range is very wide such as the measurement of:
- transformer motor coil windings
- coils of all kind
- cables and wires on the drum or as meter samples
- switch and relay contacts
- heating elements
- fuses
- connections and transitions at power rails and many more
For a cooling curve recording with freely selectable time interval a data logger for up to 1000 values is available. The complete control via RS-232 interface enables the setup of fully automatic test stations. The instrument features a PLC interface for integration into production process control classification and makes selection of the samples an easy task.
Wires and coils can be measured with temperature compensation. The temperature of the sample is measured with a Pt 100 or pyrometer and the resistance is then corrected to the equivalent at e.g. 20 °C (adjustable) in the instrument.
The application range is very wide such as the measurement of:
- transformer motor coil windings
- coils of all kind
- cables and wires on the drum or as meter samples
- switch and relay contacts
- heating elements
- fuses
- connections and transitions at power rails and many more
For a cooling curve recording with freely selectable time interval a data logger for up to 1000 values is available. The complete control via RS-232 interface enables the setup of fully automatic test stations. The instrument features a PLC interface for integration into production process control classification and makes selection of the samples an easy task.
2316 - Models & Accessories
Models
| 2316-V0000 | 20 mΩ ... 200 kΩ Measurement Range |
| 2316-V0001 | 2 mΩ ... 200 kΩ Measurement Range |
2316 - Downloads
2316 Milliohmmeter RESISTOMAT® Datasheet |
2394 - Adapter Brochure |
2392-V001- RTD Temperature Sensor Brochure |
2316-V0000 CAD Drawing Drawings |

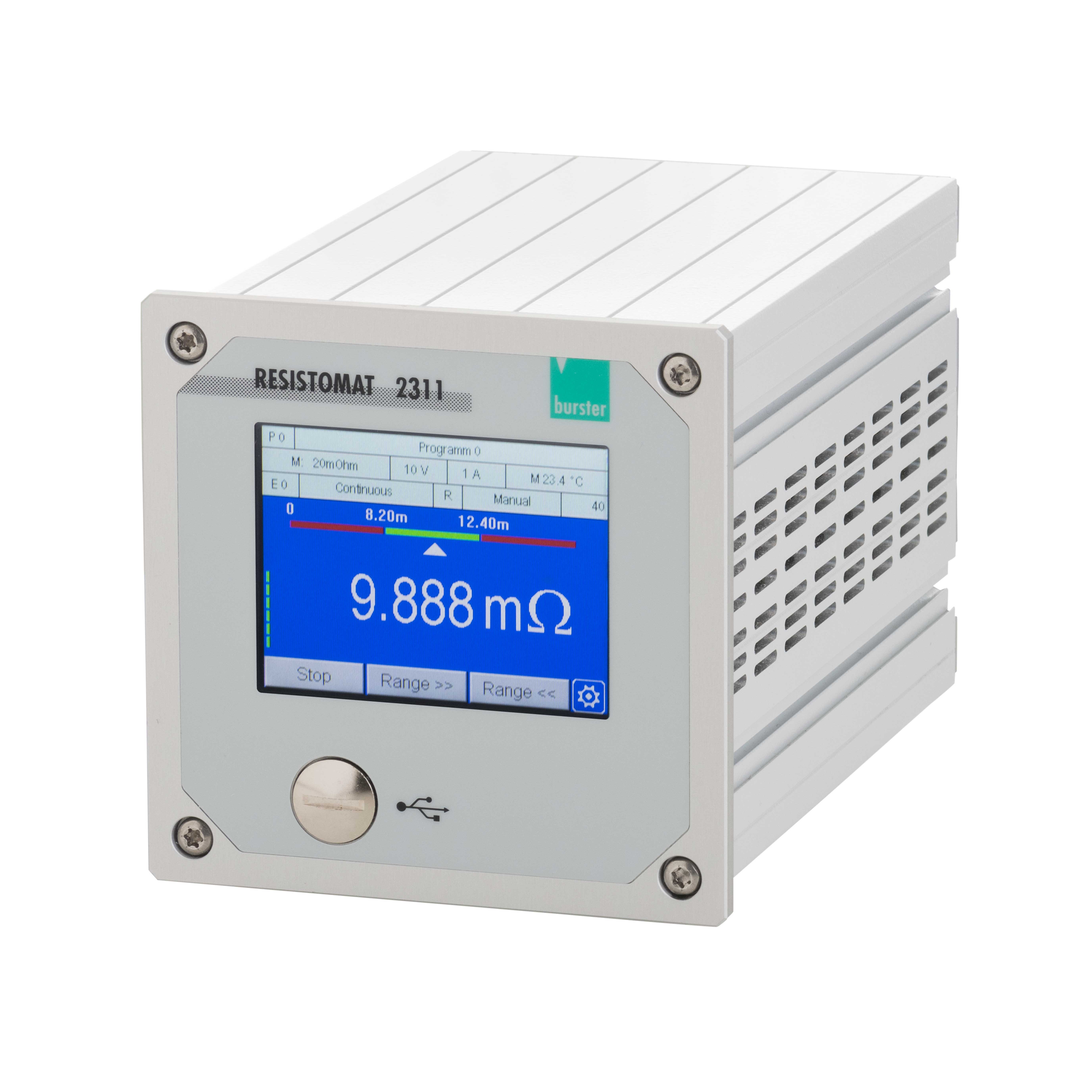

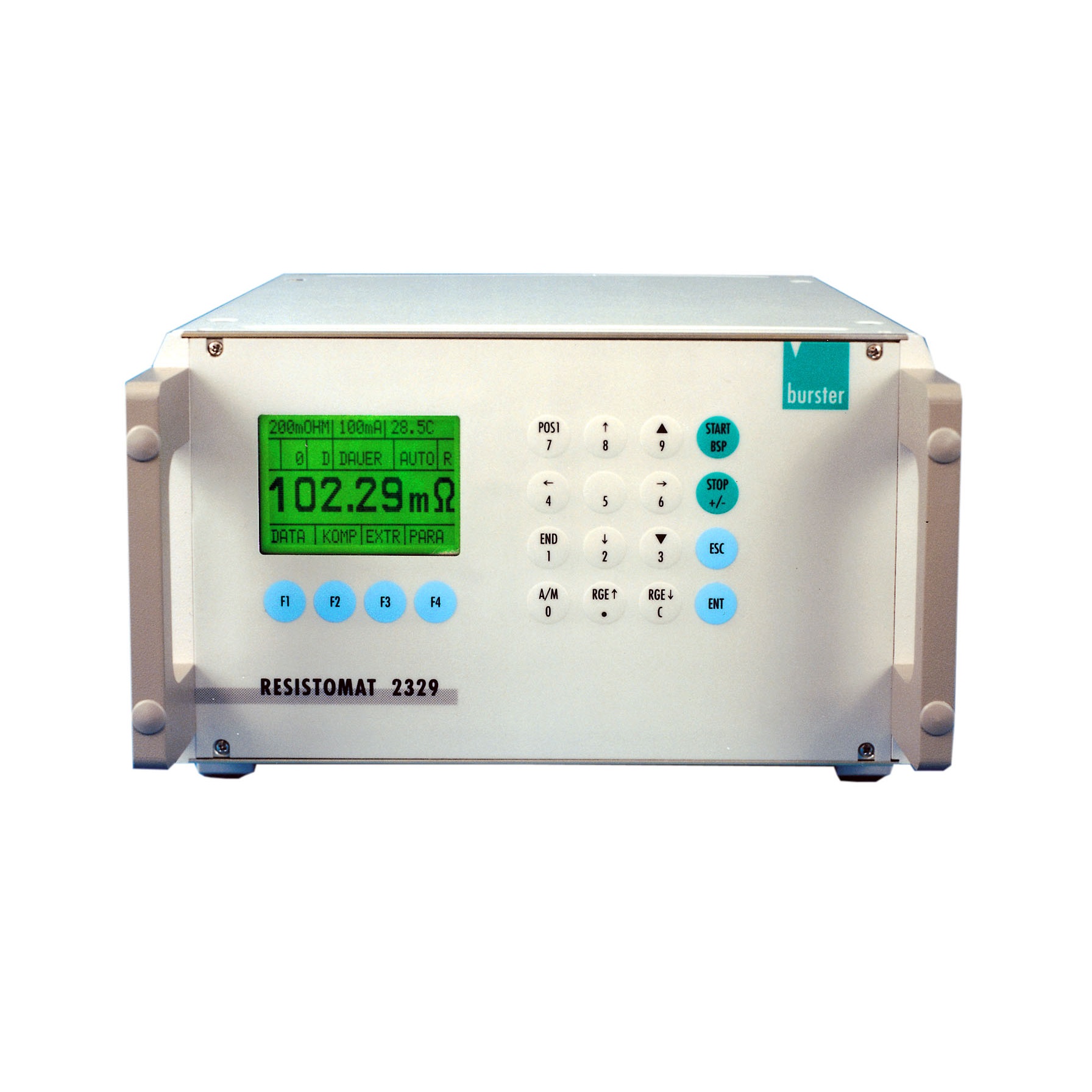

2316 - Similar Products
- Measuring ranges of 20 mΩ… to 200 kΩ
- Resolution up to 1 µΩ & accuracy 0.03 % of reading
- High-speed measurements from 10 ms/measurement, including evaluation
- Temperature compensation for all materials
- Thermoelectric voltage compensation
- Input protection up to 400 V
- 32 adjustable measuring programs
| Range | 200 mΩ, 2 Ω, 200 Ω, 20 kΩ, 200 kΩ |
| Error | ≤ 0.03 % |
| Interface | USB, Ethernet |
| Supply | 110 V AC, 230 V AC |
- Measurement range from 200 mΩ ... 200 kΩ
- Resolution up to 10 μΩ
- Measurement accuracy 0.03 % rdg.
- Automatic measurement range selection
- Up to 50 measurements and evaluations per second
- Temperature compensation for all materials
- Thermovoltage compensation
- Dry-circuit measurement in accordance with DIN IEC 512
| Range | 200 mΩ, 2 Ω, 20 Ω, 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ |
| Interface | RS-232, USB, Ethernet, Digital I/O, IEEE 488, PLC |
| Supply | 110 V AC, 230 V AC |
