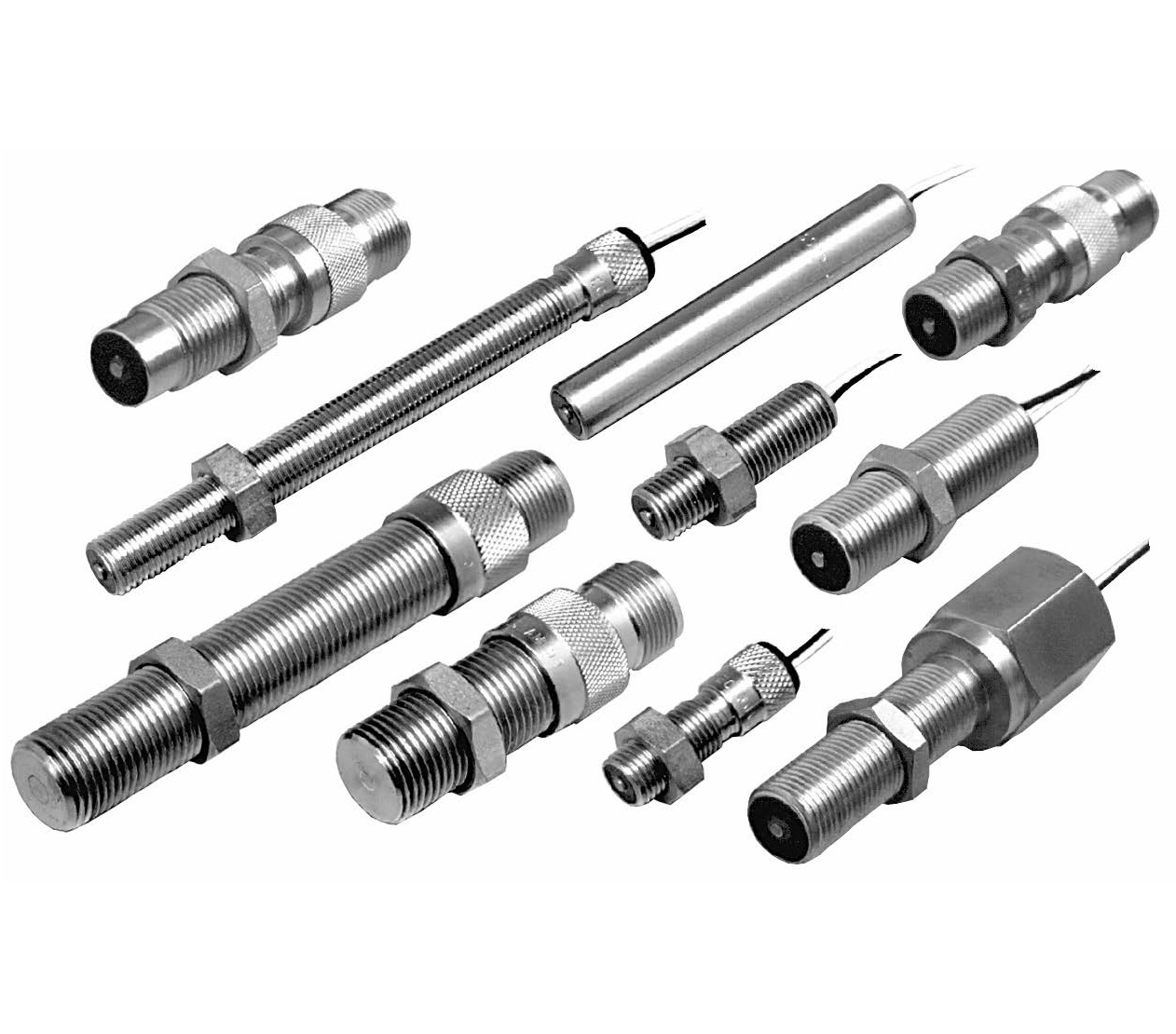

MA230, Front-End Sealed High Output VRS Sensors
The MA230 high output VRS sensors are front-end sealed for use where the sensor is exposed to fluids, lubricants or adverse environmental conditions. These sensors have high resistance coils for maximum output voltage applications.
Features:
- VRS Sensor
- Stainless Steel
- Mounting Thread: 5/8-18 UNF-2A
- Connection: MS3106 Connector
- Coil Resistance: 910 - 1200 Ohm
- Simple Installation
- Self-Powered Operation
- No Moving Parts
Quote
Datasheet
Specifications
Applications
Models & Accessories
Downloads
Similar Products
MA230 - Specifications
| Type | Magnetic Pickup |
| Max Frequency | 15 kHz |
| Mounting | 5/8-18 UNF-2A |
| Connection | MS3106 |
| Min Temperature | -55 °C |
| Max Temperature | 150 °C |
MA230 - Applications
- Engine RPM measurement on aircraft, automobiles, boats, buses, trucks and rail vehicles
- Motor RPM measurement on drills, grinders, lathes and automatic screw machines
- Motor RPM measurement on precision camera, tape recording and motion picture equipment
- Process speed measurement on food, textile, paper, woodworking, printing, tobacco and pharmaceutical industry machinery
- Motor speed measurement of electrical generating equipment
- Speed measurement of electrical generating equipment
- Speed measurement of pumps, blowers, mixers, exhaust and ventilating fans
- Flow measurement of turbine meters
- Wheel slip measurement on autos and locomotives
- Gear speed measurement
- Motor RPM measurement on drills, grinders, lathes and automatic screw machines
- Motor RPM measurement on precision camera, tape recording and motion picture equipment
- Process speed measurement on food, textile, paper, woodworking, printing, tobacco and pharmaceutical industry machinery
- Motor speed measurement of electrical generating equipment
- Speed measurement of electrical generating equipment
- Speed measurement of pumps, blowers, mixers, exhaust and ventilating fans
- Flow measurement of turbine meters
- Wheel slip measurement on autos and locomotives
- Gear speed measurement
MA230 - Models & Accessories
Models
| MA230SAN | 5/8-18 UNF-2A Thread, 28mm Thread Length, MS3106 Connection |
| MA233SAN | 5/8-18 UNF-2A Thread, 76mm Thread Length, MS3106 Connection |
MA230 - Downloads
MA230 Front-End Sealed High Output VRS Sensors Datasheet |
