9307 DigiForce, Multi channel Press Force Monitor & Functional Tester

The DIGIFORCE® 9307 monitors processes in which precisely defined functional relationships between two or more measured quantities need to be demonstrated. These measured quantities are recorded synchronously during the manufacturing process...
9307 DigiForce, Multi channel Press Force Monitor & Functional Tester
9307 DigiForce, Multi channel Press Force Monitor & Functional Tester

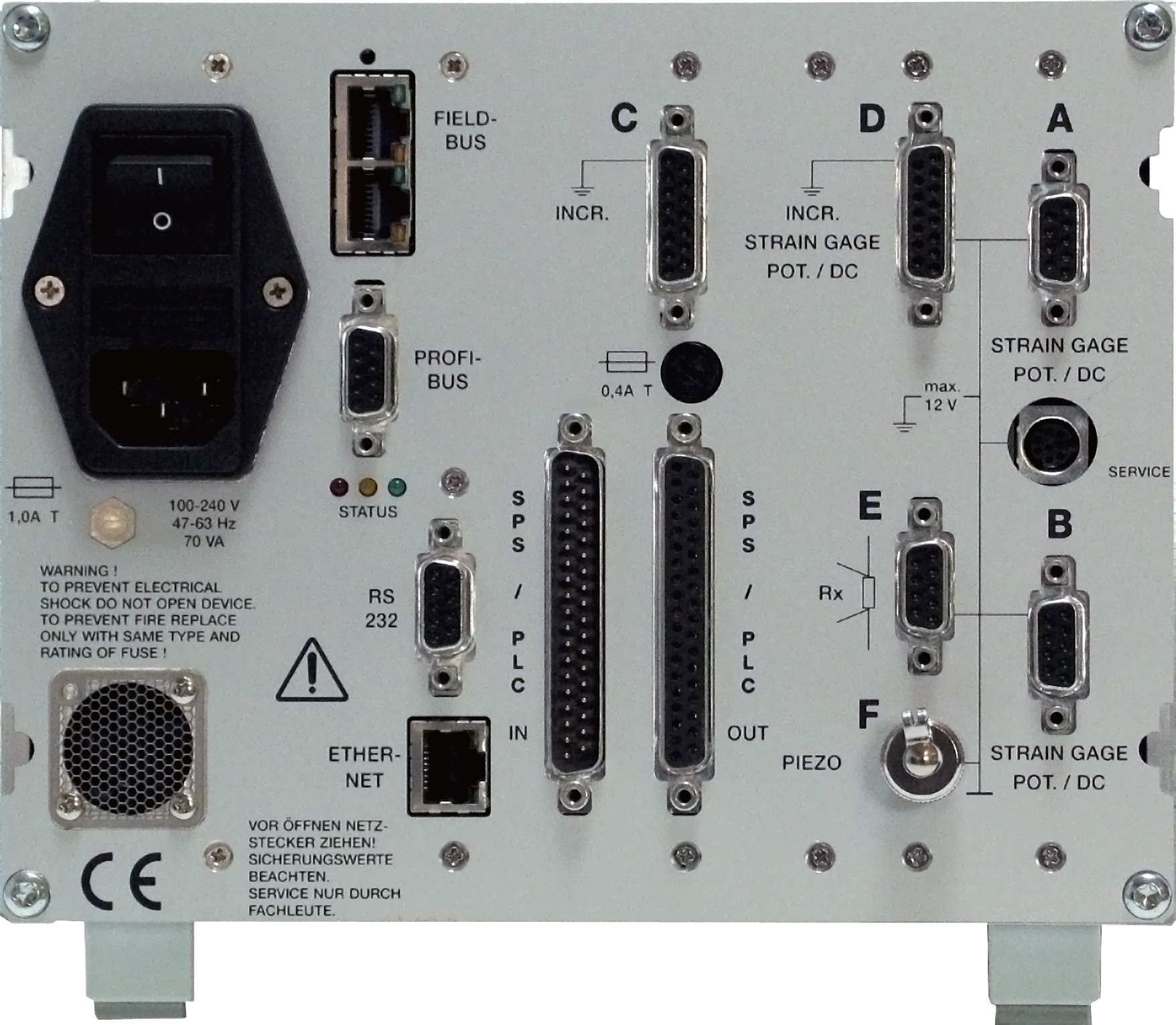

9307 Rear Connector View
9307 Curve & Pass / Fail Windows
9307 Numerical Display
Features:
  • Comprehensive process monitoring delivered by innovative evaluation elements window, thresholds, trapeziums, envelopes and mathematical operations
  • High measurement accuracy 0.05 % possible at 10 KHz sampling rate
  • Flexible process integration thanks to a range of
  • Fieldbus interfaces
  • Simultaneous monitoring of two synchronous processes
  • Ethernet, USB, RS232 as standard
  • Up to 128 measurement programs for a large variety of parts
  • Transfer of process, component and worker data
  • Intelligent signal sampling using a combination of ∆t, ∆X, ∆Y
  • Independent and variable start/stop logic
  • Convenient configuration screens
  • DigiControl PC software with powerful data-logging function for process data
Manufacturer:  Burster Praezisionsmesstechnik Gmbh
Quote
Datasheet
Description
Specifications
Applications
Models & Accessories
Support
Downloads
Related Products
9307 DigiForce - Description

The DIGIFORCE® 9307 monitors processes in which precisely defined functional relationships between two or more measured quantities need to be demonstrated. These measured quantities are recorded synchronously during the manufacturing process or subsequent functional testing to produce a measurement curve, which is then assessed using graphical and mathematical evaluation techniques.

After internal evaluation, the measurement curve and computed evaluation results are visualized on the color display and are also output at the external control interfaces. The processes in the controller are optimized by a powerful real-time operating system to achieve an extremely fast evaluation cycle: it typically takes just 20 ms to deliver the global OK or NOK evaluation result, which can then be analyzed by the higher-level controller.

In addition to the traditional evaluation windows with defined entry and exit sides, the DIGIFORCE® 9307 also offers thresholds, trapeziums of type X or Y and envelopes as graphical evaluation elements. Individual evaluation results from the graphical tools can then be combined by mathematical operations to provide even more analysis flexibility for a huge range of signal curves.

DIGIFORCE® has a wide range of process control applications, including monitoring processes such as joining, riveting or caulking, or checking torque curves, for instance for hinges or high-quality rotary controls. Even complex signal/time curves (e.g. pressure curves, leaks etc.) can be monitored using the large choice of evaluation techniques.

Simultaneous recording of up to two Y variables (Y1 and Y2) with respect to a common X variable allows many applications to Compatible sensors use one DIGIFORCE® controller to monitor two synchronous
processes.

Alternatively, this feature can be used to evaluate an application with three process variables, for instance the force/displacement curve and associated current consumption of a lifting electromagnet.

While DIGIFORCE® is used in many automated production areas, it is equally at home in the manual workstation, for instance to monitor force/displacement when using hand presses for assembly or for random spot-checking in goods inwards.

9307 DigiForce - Specifications
Input TypeDC Voltage
Potentiometer
Strain Gauge
ICP
Resistance
Encoder
SSI
# of Inputs2
3
Max Sample Rate10 kHz
EvaluationThreshold
Envelopes
Windows
Trapezium
Math Operations
InterfaceDigital I/O
Profibus
Profinet
Ethernet/IP
EtherCAT
CommunicationEthernet
USB
RS-232
9307 DigiForce - Applications

- Pressing Applications (Bushing, Pins, Dowel)
- Door Hinge Range of Motion
- Electrical Switch Testing (Linear and Rotary)
- Plastic Housing Assembly
- Seat Slide Functional Testing
- Motor Testing (Torque vs. Angel vs. Current)
- Any Application where there are repeatable relationships between 2 or 3 signals

9307 DigiForce - Models & Accessories
Models
9307-V0000Graphical Display; Std Inputs mV & Vdc; Digital I/O & Ethernet TCP/IP
9307-V0100Graphical Display; Std Inputs Piezo Option, mV & Vdc; Digital I/O & Ethernet TCP/IP
9307-V0200Graphical Display; Std Inputs Combined Analog/ Encoder + Resistance Measurement; Digital I/O & Ethernet TCP/IP
9307-V0001Graphical Display; Std Inputs mV & Vdc; Digital I/O, Ethernet TCP/IP & EtherCAT
9307-V0002Graphical Display; Std Inputs mV & Vdc; Digital I/O, Ethernet TCP/IP & Profibus
9307-V0003Graphical Display; Std Inputs mV & Vdc; Digital I/O, Ethernet TCP/IP & Profinet
9307-V0004Graphical Display; Std Inputs mV & Vdc; Digital I/O, Ethernet TCP/IP & Ethernet/IP
9307-V0101Graphical Display; Std Inputs Piezo Option, mV & Vdc; Digital I/O, Ethernet TCP/IP & EtherCAT
9307-V0102Graphical Display; Std Inputs Piezo Option, mV & Vdc; Digital I/O, Ethernet TCP/IP & Profibus
9307-V0103Graphical Display; Std Inputs Piezo Option, mV & Vdc; Digital I/O, Ethernet TCP/IP & Profinet
9307-V0104Graphical Display; Std Inputs Piezo Option, mV & Vdc; Digital I/O, Ethernet TCP/IP & Ethernet/IP
9307-V0201Graphical Display; Std Inputs Combined Analog/ Encoder + Resistance Measurement; Digital I/O & Ethernet TCP/IP & EtherCAT
9307-V0202Graphical Display; Std Inputs Combined Analog/ Encoder + Resistance Measurement; Digital I/O & Ethernet TCP/IP & Profibus
9307-V0203Graphical Display; Std Inputs Combined Analog/ Encoder + Resistance Measurement; Digital I/O & Ethernet TCP/IP & Profinet
9307-V0204Graphical Display; Std Inputs Combined Analog/ Encoder + Resistance Measurement; Digital I/O & Ethernet TCP/IP & Ethernet/IP
9307 DigiForce - Support



Downloads
9307 DigiForce - Downloads
9307 DigiForce - Related Products
  • Tension & Compression
  • Accuracy: < ±0.25% F.S.
  • Accuracy: Range ≤ 5 N: ±0.1% F.S. (Option)
  • Outer Diameter: 54.5mm - 155.0mm
  • Height: 16.0mm - 50.0mm
  • Overload Protection up to 20 kN (Option)
  • Connection: 2m Integral Cable
  • Stainless Steel
Type
Pancake
Application
Tension & Compression
Full Scale
112 lbs,
220 lbs,
450 lbs,
1120 lbs,
2200 lbs,
4500 lbs,
11200 lbs,
22000 lbs,
45000 lbs
Output
1.5 mV/V
Precision
±0.1 % FS,
±0.25 % FS
Excitation
10 V DC,
10 V AC
  • Potentiometer
  • Rectangular Profile Housing
  • Anodized Aluminum Housing
  • Connection: 1.0m Integral Cable
  • Duration: 10^8 Operations
  • Displacement Speed: up to 10m/s
Type
Potentiometer
Full Scale
25 mm,
50 mm,
75 mm,
100 mm,
150 mm
Output
Potentiometric
Non-Linearity
±0.05 % FS,
±0.10 % FS,
±0.20 % FS
Resolution
0.01 mm
Excitation
0 - 25 V DC,
0 - 60 V DC
  • Potentiometer
  • Rectangular Profile Housing
  • Anodized Aluminium Housing
  • Connection: 5-pin 9991 Plug Connector
  • Durability: 10^8 Operations
Type
Potentiometer
Full Scale
10 mm,
25 mm,
50 mm,
100 mm,
125 mm,
150 mm
Output
Potentiometric
Non-Linearity
±0.05 % FS,
±0.10 % FS,
±0.20 % FS,
±0.30 % FS
Resolution
0.01 mm
Excitation
0 - 14 V DC,
0 - 25 V DC,
0 - 50 V DC
  • Multiple Device Curve Display, 1, 2, 4 & 8 devices
  • Database supported, for SQL access
  • Data Storage to csv file format available
  • Network capable for remote data review
The DigiControl PC Software connects to multiple 9307 and/or 9311 devices, providing the Device Configuration capability, Numerical & Graphical Display, Data Review and Signature Curve Analysis.
