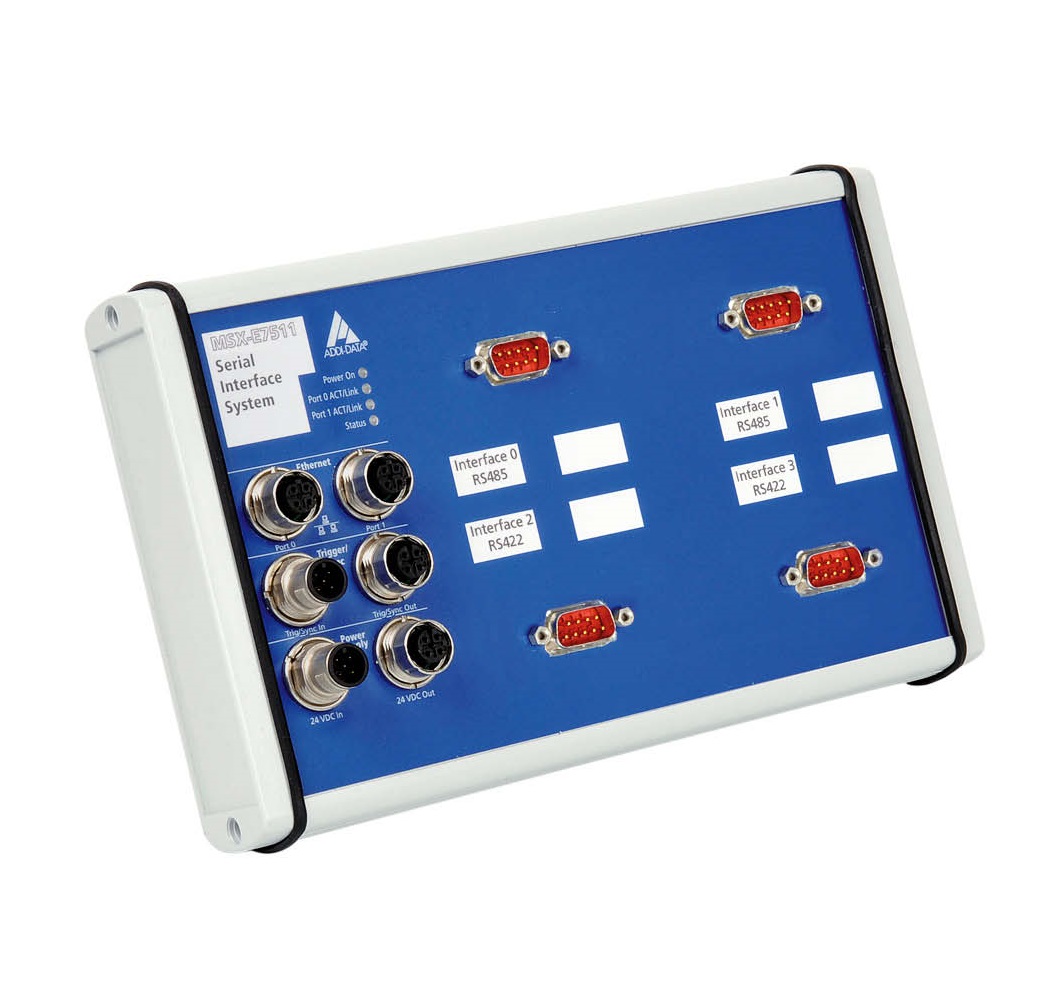

MSX-E7511, Ethernet Serial Interface System
The MSX-E7511 features status LEDs for fast error diagnostics, optical isolation and input filters.
Features:
- 4 Serial Interface Ports
- RS-232, RS-422, RS-485, 20 mA Current Loop
- 128-byte FIFO Buffer for Each Port
- 16C950 Compatible UART
- Optical Isolation 1000 V
- 64 MB Onboard SDRAM Data Storage
- Onboard Data Evaluation
- Robust Metal Housing
Manufacturer: ADDI-DATA GmbH
Quote
Datasheet
Specifications
Downloads
Similar Products
MSX-E7511 - Specifications
| Family | ADDI-DATA MSX |
| Unit Type | Standalone |
| Field Interface | RS-232/485 |
| Sync Pulse | |
| Communication | Ethernet |
| Min Temperature | -40 °C |
| Max Temperature | 85 °C |
| IP Rating | IP65 |
MSX-E7511 - Downloads
MSX-E7511 Ethernet Serial Interface System Datasheet |
