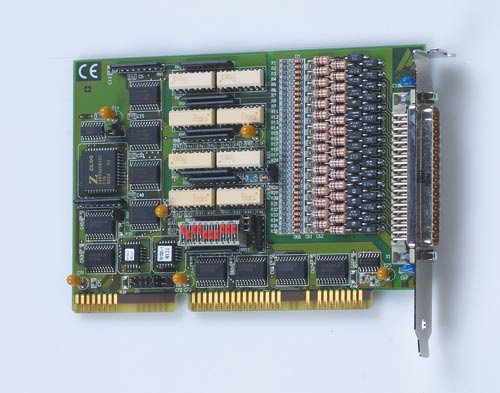

PA1000, Digital Input Board for ISA
The PA1000 board features optical isolation, creeping distance, voltage reversal protection, filtered inputs, protection against fast transients, overvoltage, electrostatic discharge and high-frequency EMI.
Features:
- Digital Input Board for ISA
- 32 Digital Inputs, 24 V, Including 14 Interruptible Inputs
- Optical Isolation 1000 V
- Voltage Reversal Protection
- Timer
Manufacturer: ADDI-DATA GmbH
Quote
Datasheet
Specifications
Downloads
Similar Products
PA1000 - Specifications
| Borad Type | ISA |
| Input Type | Digital |
| Digital Inputs | 32 |
PA1000 - Downloads
PA1000 Digital Input Board for ISA Datasheet |
