MCL6, Force/Torque Sensors

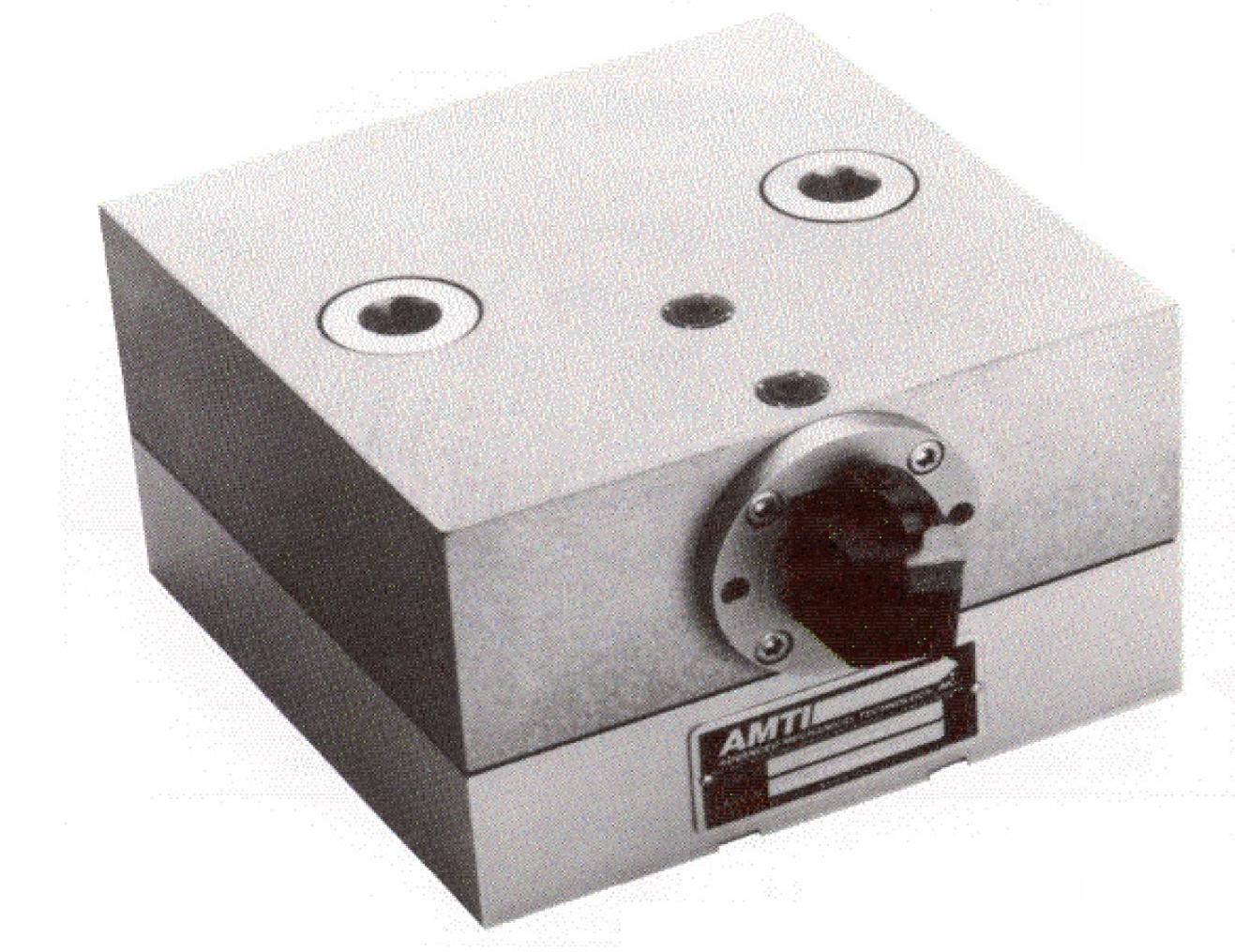

The MCL6 is designed to measure cutting tool forces during turning operations, such as in a lathe, and features a tool holder mounting fixture. The instrument has a top mounting surface (6.5 inches square) equipped with mounting holes and...
Features:
- Designed to measure cutting tool forces during turning operations, such as in a lathe, and features a tool holder mounting fixture
- Top mounting surface equipped with mounting holes and threaded inserts for convenient attachments of other devices
Manufacturer: Advanced Mechanical Technology Inc. (AMTI)
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Similar Products
MCL6 - Description
The MCL6 is designed to measure cutting tool forces during turning operations, such as in a lathe, and features a tool holder mounting fixture. The instrument has a top mounting surface (6.5 inches square) equipped with mounting holes and threaded inserts for convenient attachments of other devices. A high-strength anodized aluminum alloy (7075-T6) is used for the top plate and a corrosion resistant steel base provides added mounting stiffness for non-fully supported mounting. The tool holder standard size is 1” square. Elastomeric O-ring seals protect the strain gauges and wiring and internal coating of the strain gauges further ensures long life and consistent, reliable performance.
MCL6 - Specifications
| Channels | 6 (Fx, Fy, Fz, Mx, My, Mz) |
| Full Scale (Fz) | 1000 lbs |
| 2000 lbs | |
| 4000 lbs | |
| Non-Linearity | ± 0.2 % FS |
| Dimensions | 165 x 165 x 104.9 mm |
| Body Material | Steel |
| Min Temperature | -18 °C |
| Max Temperature | 52 °C |
MCL6 - Models & Accessories
Models
| MCL6-1000 | Fz Range: 1000 lbs |
| MCL6-2000 | Fz Range: 2000 lbs |
| MCL6-4000 | Fz Range: 4000 lbs |
MCL6 - Downloads
MCL6 Lathe Dynamometers Datasheet |
MCL6 - Similar Products
- High stiffness, high sensitivity, low crosstalk, excellent repeatability
- Incorporate special seals to prevent water and oil contamination
- Available with one to six outputs
- High strength aluminum alloy used throughout to withstand harsh manufacturing and testing environments
| Channels | 6 (Fx, Fy, Fz, Mx, My, Mz) |
| Full Scale (Fz) | 1000 lbs, 2000 lbs, 4000 lbs |
| Non-Linearity | ± 0.2 % FS |
| Dimensions | 152 x 152 x 84.07 mm |
| Body Material | Aluminum |
| Min Temperature | -18 °C |
- Six-axis transducer with threaded inserts in its top surface and a flanged base for t-slot mounting
- Ideal sensor for the manufacturing and machining measurements
- High-strength aluminum alloy (7075-T6) used throughout to withstand harsh manufacturing and testing environments
| Channels | 6 (Fx, Fy, Fz, Mx, My, Mz) |
| Full Scale (Fz) | 1000 lbs, 2000 lbs, 4000 lbs |
| Non-Linearity | ± 0.2 % FS |
| Dimensions | 305 x 406 x 78.74 mm |
| Body Material | Aluminum |
| Min Temperature | -18 °C |
- Six-axis transducer with threaded inserts in its top surface and a flanged base for t-slot mounting
- High-strength aluminum alloy (7075-T6) is used throughout to withstand harsh manufacturing and testing environments
- Durable anodized finish protects the exterior from corrosion
- Internal potting of the strain gauges further insures long life and consistent, reliable performance.
| Channels | 6 (Fx, Fy, Fz, Mx, My, Mz) |
| Full Scale (Fz) | 1000 lbs, 2000 lbs, 4000 lbs |
| Non-Linearity | ± 0.2 % FS |
| Dimensions | 203 x 559 x 79.25 mm |
| Body Material | Aluminum |
| Min Temperature | -18 °C |
- Compact six-component force sensor
- Stainless steel body and an oil-filled pressure compensation bladder to enable short-term (<24 hours) continuous submersion in fresh water
| Channels | 6 (Fx, Fy, Fz, Mx, My, Mz) |
| Full Scale (Fz) | 1000 lbs, 2000 lbs |
| Non-Linearity | ± 0.2 % FS |
| Dimensions | 63.5 x 63.5 mm |
| Body Material | Stainless Steel |
| Min Temperature | -18 °C |
- Compact six-component force sensor
- Ability to be submersed in fresh water (<24 hours)
| Channels | 6 (Fx, Fy, Fz, Mx, My, Mz) |
| Full Scale (Fz) | 1000 lbs, 2000 lbs |
| Non-Linearity | ± 0.2 % FS |
| Dimensions | 64 x 64 mm |
| Body Material | Stainless Steel |
| Min Temperature | -18 °C |
