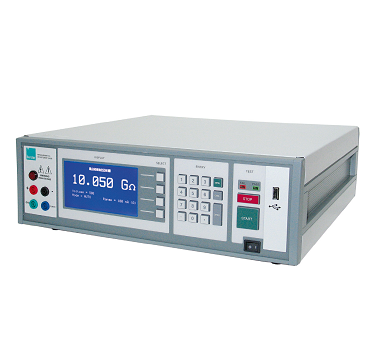

2408, Digital Teraohmmeter
RESISTOMAT® model 2408 megohmmeter is a microprocessor controlled instrument for measuring high resistances and small currents. Measurements can be made in the range 1 kW to 100 TW, with the user able to freely select a test voltage...
Features:
- Resistance range 1 kΩ ... 100 TΩ
- Current range 0.1 pA ... 1 mA
- Automatic range selection
- Test voltage selectable from 1 V ... 1000 V
- Limit indicator
- Measurement results storable on external USB flash drive
- RS232 interface (IEEE488, USB and Ethernet optional)
Manufacturer: Burster Praezisionsmesstechnik Gmbh
Quote
Datasheet
Description
Specifications
Applications
Models & Accessories
Downloads
Similar Products
2408 - Description
RESISTOMAT® model 2408 megohmmeter is a microprocessor controlled instrument for measuring high resistances and small currents.
Measurements can be made in the range 1 kW to 100 TW, with the user able to freely select a test voltage between 1 V and 1000 V. All instrument functions can be set manually and via RS232 interface (standard) or IEEE488 interface (option).
On-screen information guides the user efficiently through the meter’s range of application-oriented configuration options, clearly displayed on the backlit graphical display with
adjustable contrast level.
With its rugged case, this instrument is designed for both laboratory use and harsh industrial environments. For automated system applications the megohmmeter RESISTOMAT® model 2408 includes an I/O interface connection with remote start and pass/fail outputs.
Test setup configurations and measurement results can be stored in CSV format on an external USB flash drive for easy use with Microsoft Excel.
Measurements can be made in the range 1 kW to 100 TW, with the user able to freely select a test voltage between 1 V and 1000 V. All instrument functions can be set manually and via RS232 interface (standard) or IEEE488 interface (option).
On-screen information guides the user efficiently through the meter’s range of application-oriented configuration options, clearly displayed on the backlit graphical display with
adjustable contrast level.
With its rugged case, this instrument is designed for both laboratory use and harsh industrial environments. For automated system applications the megohmmeter RESISTOMAT® model 2408 includes an I/O interface connection with remote start and pass/fail outputs.
Test setup configurations and measurement results can be stored in CSV format on an external USB flash drive for easy use with Microsoft Excel.
2408 - Specifications
| Range | 1 MΩ |
| 10 MΩ | |
| 100 MΩ | |
| 1 GΩ | |
| 10 GΩ | |
| 100 GΩ | |
| 1 TΩ | |
| 10 TΩ | |
| 100 TΩ | |
| Error | ≤ 1 % |
| ≤ 5 % | |
| ≤ 10 % | |
| Interface | RS-232 |
| USB | |
| Ethernet | |
| IEEE 488 | |
| Supply | 110 V AC |
| 230 V AC |
2408 - Applications
RESISTOMAT® model 2408 megohmmeter has been especially developed to measure extremely high resistance values with a high degree of accuracy. This instrument has a specification
that makes it suitable for all common applications. The measurement voltages equal those given in the DIN test regulations (e.g. DIN 51953, DIN 53482, DIN 54345, DIN 57281 and DIN 57411) for measuring the electrical resistance value across films, floor coverings, test equipment, cables, moldable materials, rubber, plastics, insulating oils and the like.
Fast serial measurements can be performed using the integral limit indicator. If the reading lies below an adjustable limit, the pass/fail limit indicator trips and enables a potential-free output. All functions can be PC-controlled via the built-in RS232 interface provided as standard.
The guard circuit in shield technology can be used to measure individual resistances in a delta connection. This means, for instance, it is possible to measure the insulation resistance between wire and shield on a 2-core cable with common shield without the result being distorted by the two guard resistances lying in parallel (see diagram overleaf). The meter can also be used to measure the leakage currents flowing through the test specimen; in “current measurement “ mode it measures currents from 0.1 pA to 1mA.
that makes it suitable for all common applications. The measurement voltages equal those given in the DIN test regulations (e.g. DIN 51953, DIN 53482, DIN 54345, DIN 57281 and DIN 57411) for measuring the electrical resistance value across films, floor coverings, test equipment, cables, moldable materials, rubber, plastics, insulating oils and the like.
Fast serial measurements can be performed using the integral limit indicator. If the reading lies below an adjustable limit, the pass/fail limit indicator trips and enables a potential-free output. All functions can be PC-controlled via the built-in RS232 interface provided as standard.
The guard circuit in shield technology can be used to measure individual resistances in a delta connection. This means, for instance, it is possible to measure the insulation resistance between wire and shield on a 2-core cable with common shield without the result being distorted by the two guard resistances lying in parallel (see diagram overleaf). The meter can also be used to measure the leakage currents flowing through the test specimen; in “current measurement “ mode it measures currents from 0.1 pA to 1mA.
2408 - Models & Accessories
Models
| 2408 | Megohmmeter RESISTOMAT® with RS232 interface |
| 2408-V001 | Megohmmeter RESISTOMAT® with RS232/IEEE488 interfaces interfaces |
2408 - Downloads
2408 Megohmmeter RESISTOMAT Datasheet Datasheet |
2408-Z004, Guard ring measurement cell Brochure |
2408-Z011, Electrode Brochure |
2408-Z005, Guard ring measurement cell Brochure |
2408-Z006, Guard ring measuring electrode Brochure |
2408-Z002, Lead set with measuring tongs Brochure |

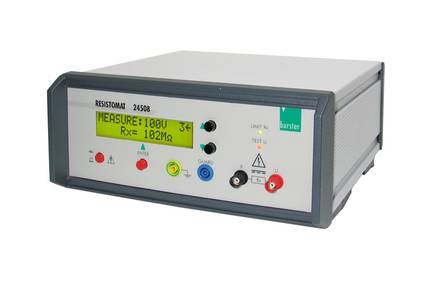

2408 - Similar Products
- Resistance measurement range from 50 kΩ ... 10 TΩ
- Current measurement range 10 pA - 10 mA
- Automatic / manual switch of measurement range
- Test voltage 45 V, 100 V, 250 V, 500 V
- Limit value indicator
- RS232 interface (USB and Ethernet option)
| Range | 1 MΩ, 10 MΩ, 100 MΩ, 1 GΩ, 10 GΩ, 100 GΩ, 1 TΩ, 10 TΩ, 100 TΩ |
| Error | ≤ 1 % , ≤ 5 %, ≤ 10 % |
| Interface | RS-232, USB, Ethernet |
| Supply | 230 V AC |
