K-18, Thru-Hole

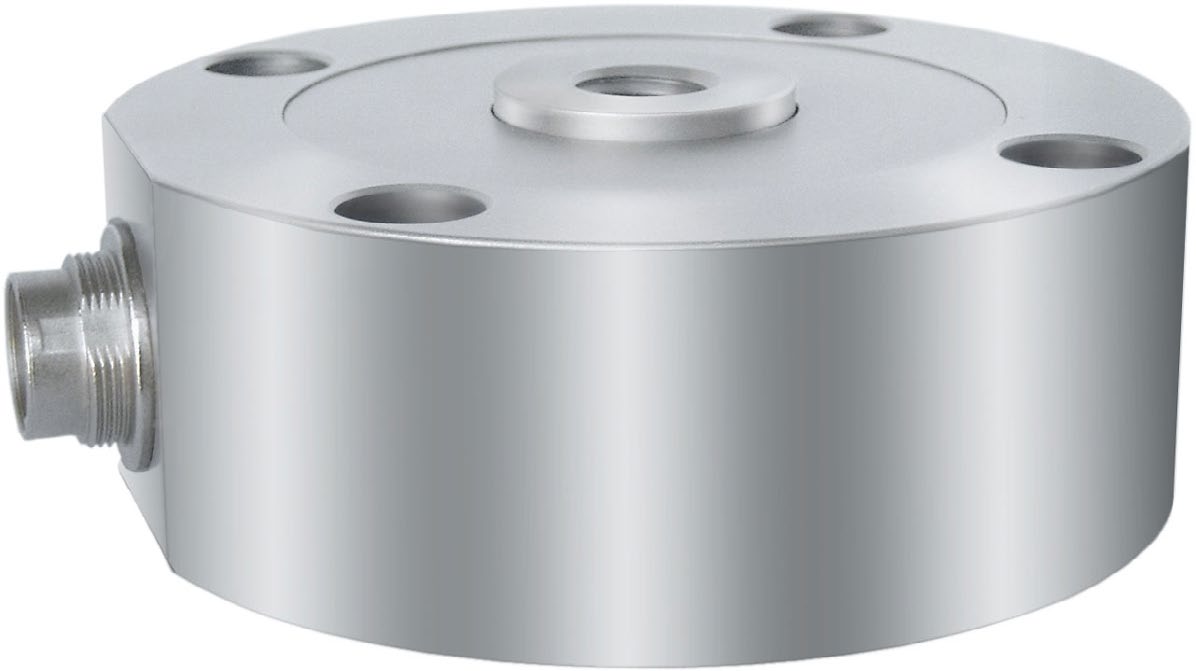

The K-18 load cell have been specially designed to show-up with small external dimensions. These sensors can be used for a wide range of industrial and laboratory applications due to their small size. The small diameter and height make this...
Features:
- Compression
- Accuracy: ±0.5%
- Outer Diameter: 30.0mm - 270.0mm
- Inner Diameter: 5.0mm - 100.0mm
- Height: 30.0mm - 120.0mm
- Connection: Range ≤ 200 kN: 3m Integral Cable
- Range ≥ 500 kN: 6-pin Series 723 Connector
- Stainless Steel
- 2 Year Warranty
Manufacturer: Lorenz Messtechnik GmbH
Quote
Datasheet
Description
Specifications
Applications
Models & Accessories
Downloads
Similar Products
K-18 - Description
The K-18 load cell have been specially designed to show-up with small external dimensions. These sensors can be used for a wide range of industrial and laboratory applications due to their small size. The small diameter and height make this load cell perfect for installation in structures, in which the measured force is guided directly through the sensor after disconnection.
K-18 - Specifications
| Type | Thru-Hole |
| Application | Compression |
| Full Scale | 1120 lbs |
| 2200 lbs | |
| 4500 lbs | |
| 11200 lbs | |
| 22000 lbs | |
| 45000 lbs | |
| 112000 lbs | |
| 225000 lbs | |
| 670000 lbs | |
| 1120000 lbs | |
| Output | 1 mV/V |
| Precision | ±0.5 % FS |
| Excitation | 2 V - 12 V DC |
| IP Rating | IP67 |
| Min Temperature | -10 °C |
| Max Temperature | 70 °C |
K-18 - Applications
Equipment engineering
• Automotive industry
• Measuring and control devices
• Fully automated machining centers
• Tool engineering
• Special mechanical engineering
K-18 - Models & Accessories
Models
| K-11 to K-2529 | |
| K-18 |
K-18 - Downloads
K-18, Compression Force Sensor Datasheet Datasheet |
