CLSx - Steering Effort Sensor, Steering Effort Sensor-Top accuracy, ultra slim shape

The CLSx captures precisely the parameters torque, steering angle and rotational velocity. Optionally, it also acquires acceleration in the center of the steering column (x, y and z direction) as well as rotational acceleration.
CLS-E Dx-Sensor
CLS-E Dx-Sensor
CLSx - Steering Effort Sensor

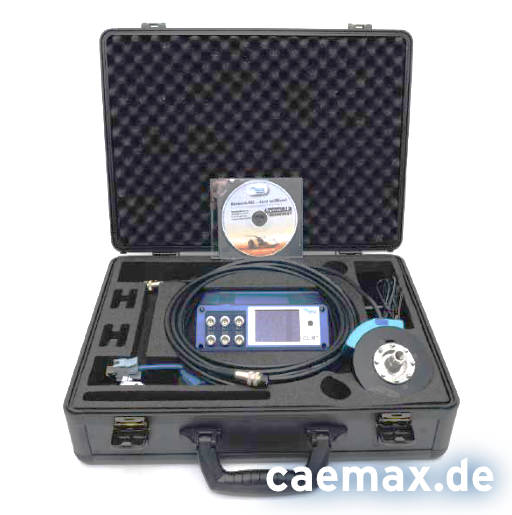

CLSx Receiver - Control Unit
CLS-E Dx-Kit

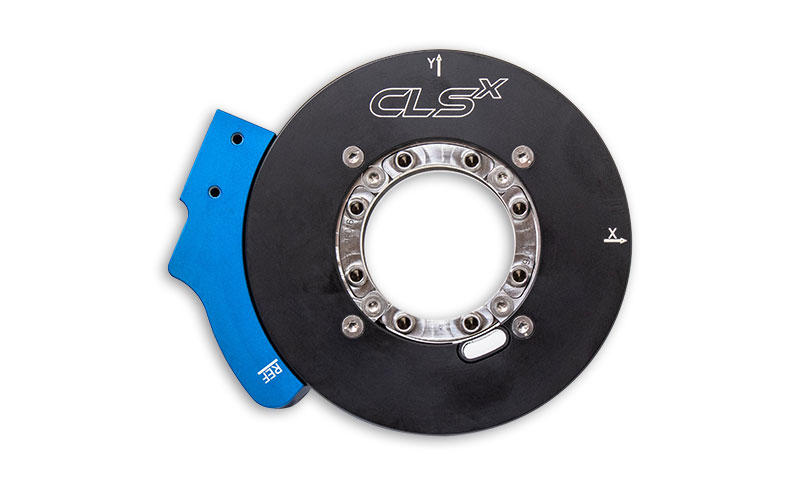

CLSx Steering Wheel Sensor
Features:
  • Ultra slim sensor body design for seamless integration with minimal extension of steering column
  • All functions of the steering wheel are preserved
  • Steering torque range ±100 Nm or ±200 Nm
  • Steering angle range ±1475°
  • Rotational velocity range ±1000°/sec
  • Acceleration in x, y, z direction (optional)
  • Rotational acceleration (optional)
  • Data output: CAN and analog
  • Online monitoring of all channels in physical values (OLED display)
Manufacturer:  CAEMAX imc group
Quote
Datasheet
Specifications
Models & Accessories
Support
Downloads
Related Products
CLSx - Steering Effort Sensor - Specifications
Input TypesStrain Gauge
Vdc
No. of Inputs1-2
OutputAnalog
Ethernet
CANbus
CLSx - Steering Effort Sensor - Models & Accessories
Models
STET/CMX-CLS-X100CLSx Steering Effort Sensor 100Nm
STET/CMX-CLS-X200CLSx Steering Effort Sensor 200 Nm
STET/CMX-CLS-REFCLSx option reference mark
CLSx - Steering Effort Sensor - Support

Installing the Universal High Precision Steering Wheel Effort Sensor

CLSx - Steering Effort Sensor - Downloads
CLSx - Steering Effort Sensor - Related Products
  • Easy to assemble and operate
  • Full- and half bridge Strain Gauge configurations
  • Auto-Zero adjustment can be Set on the receiver
  • Gain: 250-8000 can be Set on the receiver side
  • Transmitter Distance to Receiver up to 25mm (35mm Optional)
  • Signal bandwidth 0…1200Hz (-3dB)
  • Output +/-10V and digital for interface (Option)
Input Types
Strain Gauge,
Temperature
No. of Inputs
1-2
Output
Analog
  • Torque, Force, Strain, Pressure measurements in restricted spaces
  • Well suitable for high rpm of shafts
  • Full & Half Bridge Strain Gauge configurations
  • Digital Transmission achieved inductively
  • Signal bandwidth 0…1200Hz (-3dB)
  • Multiple Systems can operated at the same time
Input Types
Strain Gauge,
Temperature
No. of Inputs
1-2
Output
Analog
