TEL1-PCM-Flex, Flexible / Flat Wireless Telemetry System

This is a single channel system with a Flexible / Flat Wireless Transmitter for Shaft mounting or where a small form factor. The Digital Transmission of the measurement is used and regenerates a High Level Analog Signal.
TEL1-PCM-Flex, Flexible / Flat Wireless Telemetry System
TEL1-PCM-Flex, Flexible / Flat Wireless Telemetry System

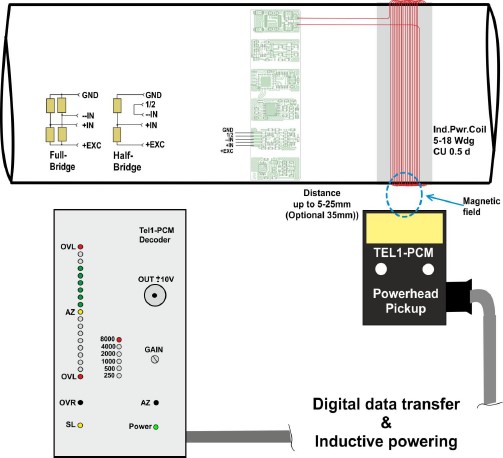

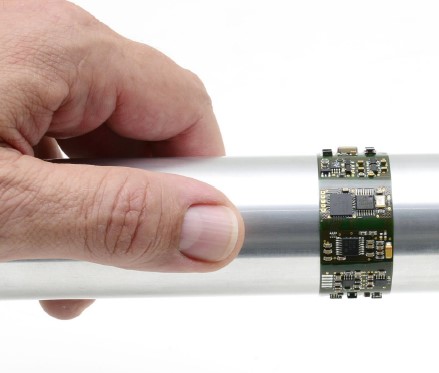

TEL1-PCM-Flex_Shaft
TEL1-PCM-Flex_System
Features:
  • Torque, Force, Strain, Pressure measurements in restricted spaces
  • Well suitable for high rpm of shafts
  • Full & Half Bridge Strain Gauge configurations
  • Digital Transmission achieved inductively
  • Signal bandwidth 0…1200Hz (-3dB)
  • Multiple Systems can operated at the same time
Manufacturer:  KMT Telemetry
Quote
Brochure
Specifications
Models & Accessories
Downloads
Similar Products
TEL1-PCM-Flex - Specifications
Input TypesStrain Gauge
Temperature
No. of Inputs1-2
OutputAnalog
TEL1-PCM-Flex - Models & Accessories
Models
TEL1--PCM-Flex-STGTEL1-PCM-Flex Stain Gauge Module
TEL1-PCM-DECTEL1-PCM-DEC Receiver
TEL1-PCM-Powerhead/PickupTEL1-PCM Power head and receiver pickup
TEL1-PCM-Flex - Downloads
TEL1-PCM-Flex - Similar Products
  • Easy to assemble and operate
  • Full- and half bridge Strain Gauge configurations
  • Auto-Zero adjustment can be Set on the receiver
  • Gain: 250-8000 can be Set on the receiver side
  • Transmitter Distance to Receiver up to 25mm (35mm Optional)
  • Signal bandwidth 0…1200Hz (-3dB)
  • Output +/-10V and digital for interface (Option)
Input Types
Strain Gauge,
Temperature
No. of Inputs
1-2
Output
Analog
  • Ultra slim sensor body design for seamless integration with minimal extension of steering column
  • All functions of the steering wheel are preserved
  • Steering torque range ±100 Nm or ±200 Nm
  • Steering angle range ±1475°
  • Rotational velocity range ±1000°/sec
  • Acceleration in x, y, z direction (optional)
  • Rotational acceleration (optional)
  • Data output: CAN and analog
Input Types
Strain Gauge,
Vdc
No. of Inputs
1-2
Output
Analog,
Ethernet,
CANbus
  • Static & Dynamic measurements up to 24,000 Hz
  • 2 to 64 channel systems
  • Inputs for Strain Gauges, Temperature, ICP sensors or Voltages
  • 4 Vdc Excitation & Gains selectable, 125, 250, 500, 1000 or 2000
  • 16 bit ADC, simultaneous sampling
  • Full software programmable & Auto Zero calibration
  • Inductive or battery powered
  • Rugged, water proof housing
Input Types
Strain Gauge,
Vdc,
Temperature
No. of Inputs
8 +,
2-20
Output
Analog
  • Up to six analog inputs per transmitter unit: strain gauges, temperatures, analog signals, freely programmable
  • Sampling rate up to 4,8 kHz (16 bit) per channel
  • Synchronous data collection and processing of up to 4 transmitters (SCTs)
  • Integrated standard interfaces: Analog, CAN, Ethernet
  • Extended Temperature available -40 °C to +125 °C (Dx-HT)
  • Measurement value output in physical units available
  • No authorization required for radio transmission (2.4 GHz band)
  • Convenient parametrization by RemusLAB software or web browser
Input Types
Strain Gauge,
Vdc,
Temperature,
Frequency
No. of Inputs
2-20
Output
Analog,
CANbus
  • Measurement of driving and breaking torques
  • sealed IP67 (waterproof)
  • Transmitter electronics integrated in sensor
  • My = 3.000 Nm (4.500 Nm optional)
  • Power supply: rechargeable battery (approx. 50 h operating time)
  • Working temperature (Sensor): -10°C … +60°C
  • Programmable amplifiers with autozero function
  • Convenient parameterization by RemusLAB or webbrowser
Input Types
Strain Gauge,
Temperature
No. of Inputs
2-20
Output
Analog,
Ethernet,
CANbus
