MCVK-22.5kN, Universal Low Profile Load Cell - Force Sensor
Industrial Load Cell for demanding applications. Suited for Tension or Compression with 6 perimeter mounting holes and threaded center loading. Capable of withstanding high cycle applications.
Features:
- Force Range +/-22.5kN ( 5,000 lbs)
- Stainless Steel housing, IP65 rating
- 0.1 % F.S. Non-linearity
- High Overload Capacity
- 700 ohm bridge resistance for low power consumption
- 6 pin MS style connector
Manufacturer: Scaime
Quote
Datasheet
Specifications
Models & Accessories
Downloads
Related Products
Similar Products

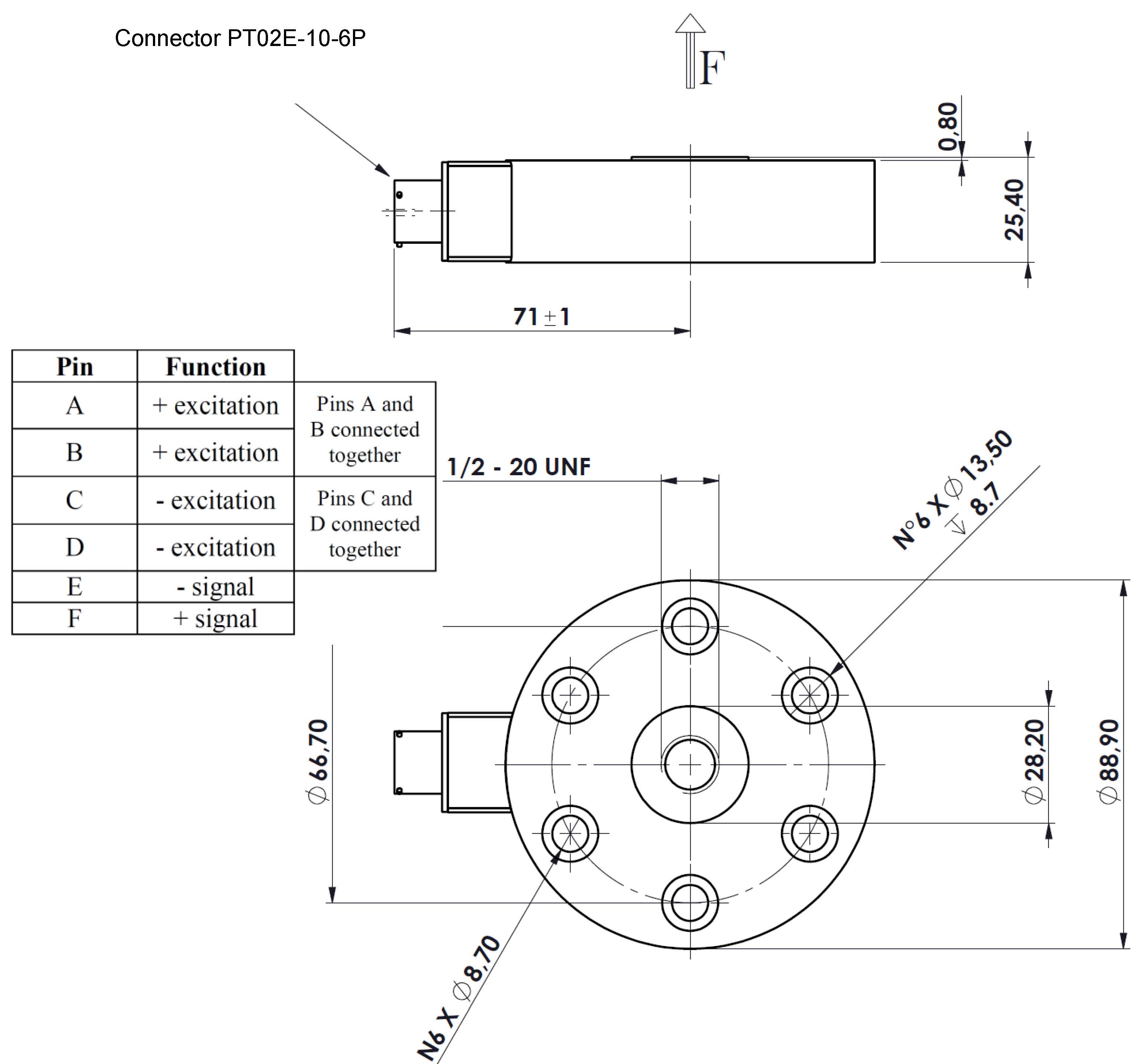

MCVK-22.5kN - Specifications
| Type | Pancake |
| Load Button | |
| Full Scale | 2000 lbs |
| 5000 lbs | |
| Output | 2 mV/V |
| Precision | ±0.1 % FS |
| ±0.2 % FS | |
| Excitation | 1 V - 15 V DC |
| 5 V DC | |
| 10 V DC |
MCVK-22.5kN - Models & Accessories
Models
| MCVK-0.5kN | 500N Load Cell |
| MCVK-1kN | 1000 N Load cell |
| MCVK-2.5kN | 2500 N Load Cell |
| MCVK-5kN | 5000 N Load Cell |
| MCVK-10kN | 10,000N Load Cell |
Accessories
| AG003-ZA | Cable Assembly, Connector PT06F-10-6S (A+exc,B+sen,C-sen,D-exc,E-sig,F+sig) to open leads, in lengths from 1ft to 100ft, (custom termination connections available) |
| AG176-ZA | Cable Assembly, Connector PT06F-10-6S (A+exc+sen, B-sig, C+sig+cal, D -exc - sen); to open leads, in lengths from 1ft to 100ft, (custom termination connections available) |
