VM-FFT, PC Software for Measurement for Vibration & FFT Analysis
PC based measuring system software using the IEPE / USB interfaces M302/M312 and IEPE compatible accelerometers or microphones.
Features:

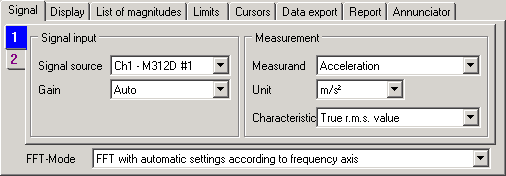

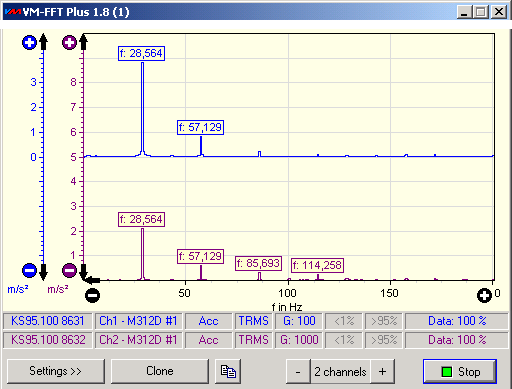

- Synchronous display of up to four spectra per window
- High frequency resolution
- Five window functions

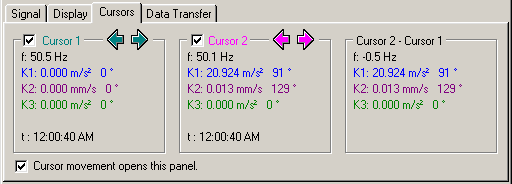

- Two measuring cursors with magnitude and frequency display - Peak and RMS analysis
- Measurement of vibration velocity, displacement & acceleration in VM-FFT+
- Power spectral density (PSD) in VM-FFT+

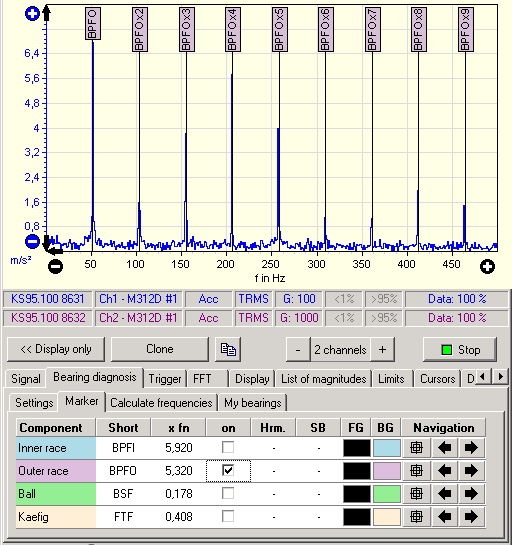

- Envelope spectrum for roller bearing monitoring in VM-FFT+
- Limit curve with external alarms in VM-FFT+
- Three-dimensional presentation with time axis in VM-FFT 3D
Manufacturer: MMF
Quote
Datasheet
Description
Models & Accessories
Downloads
Related Products
VM-FFT - Description
The VM-FFT Software Module is an essential tool within the VibroMetra vibration measurement system, designed for a broad spectrum of applications from modal analysis to acoustical analysis using IEPE microphones. It offers a high-frequency resolution and synchronous display of up to four FFT spectra, enhancing modal analysis, vibration elimination, roller-bearing fault detection, and more. VM-FFT+ expands capabilities with Power Spectral Density (PSD) and envelope spectrum for detailed monitoring. Its intuitive design caters to both experienced and novice FFT users, ensuring comprehensive analysis and diagnostic capabilities across various fields.
Features for VM-FFT Models

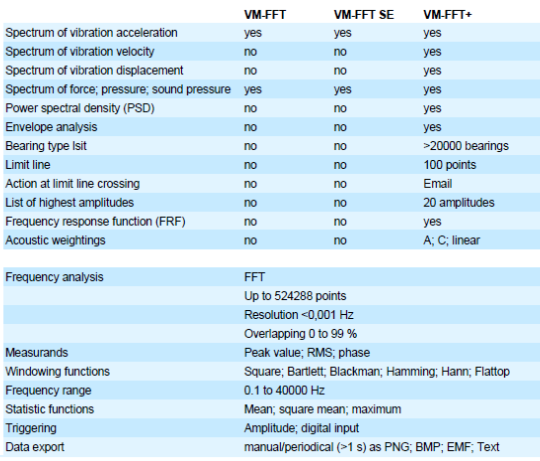

| VM-FFT |
| Spectrum of vibration acceleration |
| Spectrum of force; pressure; sound pressure |
| VM-FFT SE |
| Spectrum of vibration acceleration |
| Spectrum of force; pressure; sound pressure |
| VM-FFT+ |
| Spectrum of vibration acceleration |
| Spectrum of vibration velocity |
| Spectrum of vibration displacement |
| Spectrum of force; pressure; sound pressure |
| Power spectral density (PSD) |
| Envelope analysis |
| Bearing type list: >20000 bearings |

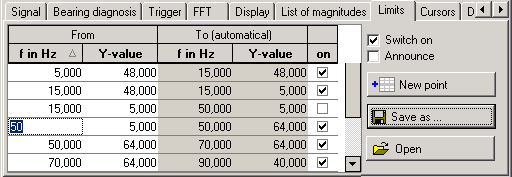

| Limit line: 100 points |
| Action at limit line crossing: Email |
| List of highest amplitudes 20 amplitudes |
| Frequency response function (FRF) |
| Acoustic weightings: A; C; linear |
VM-FFT - Models & Accessories
Models

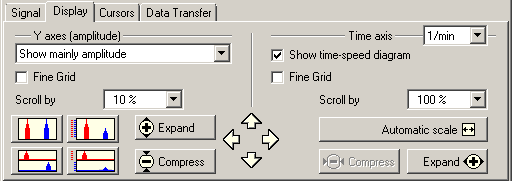

| VM-FFT | Measurement & Display of up to 4 Spectra |
| VM-FFT+ | Measurement & Roller Bearing Analysis |
| VM-FFT SE | Measurement & Vibration Analyzer |
| VM-FFT 3D | Measurement & Waterfall Analyzer |
| VM-FFT+ 3D | Measurement & Waterfall Analyzer, Envelope Spectrum & Markers for Bearing Analysis |
| VM-TRACK | Run-up & Ramp-Down Analyzer |
| VM-TRACK+ | Run-up & Ramp-Down Analyzer, acceleration, Velocity & Displacement |
Accessories
| M312B | VibroMetra USB sensor interface |
| VM-ADAM | VibroMetra license for event messenger via digital outputs |
| VM-MAIL | VibroMetra license for event messenger via email |
