VK 500-40, Manual toggle press
Toggle press with 5.0 kN Capacity and a working stroke of 40 mm.
Features:
- Manual toggle press
- Capacity: 5.0 kN
- Working stroke: 40mm
- Throat: 63 mm
- Daylight: 40 - 213 mm
- Table size: 110 x 65
- Ram bore Ø x Depth: 10H7 x 25
- Ram area: 21 x 21
Manufacturer: Mäder Pressen
Quote
Description
Specifications
Models & Accessories
Related Products
Similar Products
VK 500-40 - Description
VK range
The square ram has significant advantages compared with the round ram:
- Absolute protection against twisting
- Hardened and precisely ground ram
- Press ram guide free from play
- Large tool locating surface
- Guides in tool therefore usually unnecessary
- Practically maintenance-free operation
mäder hand-operated toggle presses with square ram are ideal tools for manufacturing small precision parts with tight tolerances in small and medium-sized batches where automation would be too cost-intensive
ERGOPRESS® hand lever
- Ergonomic user comfort
- 360º Stepless adjustment
- Lever angled to the side: free view of work area and ergonomically comfortable position
- Simple and easy conversion for the left-handers (except HS and Z option) without losing the tool setting. Ideal for job sharing on one press.
VK 500-40 - Specifications

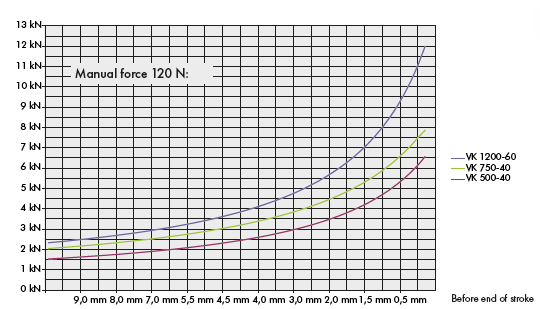

| Type of Press | Toggle Press |
| Capacity | 5.0 kN |
| Working Stroke | 40 mm |
| Daylight Start | 40 mm |
| Daylight End | 213 mm |
| Table Size | 110 x 65 mm |
| Ram Dimensions | 10H7 x 25 mm |
| Ram Area | 21 x 21 |
VK 500-40 - Models & Accessories
Models
| VK 500-40 | |

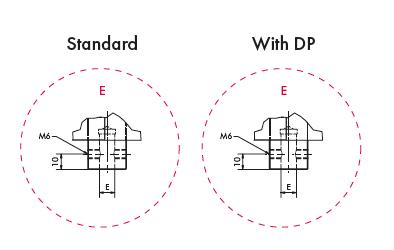

| VK 500-40 DP | VK 500-40 with Precision ram adjustment |
| VK 500-40 HS | VK 500-40 with Return travel lock |
| VK 500-40 DP HS | VK 500-40 with Precision ram adjustment and Return travel lock |
| VK 500-40 Z | VK 500-40 with Counter |
| VK 500-40 DP Z | VK 500-40 with Precision ram adjustment and Counter |
| VK 500-40 HS Z | VK 500-40 with Return travel lock and Counter |
| VK 500-40 DP HS Z | VK 500-40 with Precision ram adjustment, Return travel lock and Counter |
| VK 500-40 TB | VK 500-40 with Table bore 12H7 |
| VK 500-40 TB DP | VK 500-40 with Table bore 12H7 and Precision ram adjustment |
| VK 500-40 TB HS | VK 500-40 with Table bore 12 H7 and Return travel lock |
| VK 500-40 TB DP HS | VK 500-40 with table bore 12H7, Precision ram adjustment and Return travel lock |
| VK 500-40 TB Z | VK 500-40 with Table bore 12H7 and Counter |
| VK 500-40 TB DP Z | VK 500-40 with Table bore 12H7, Precision ram adjustment and Counter |
| VK 500-40 TB HS Z | VK 500-40 with Table bore 12H7, Return travel lock and Counter |
| VK 500-40 TB DP HS Z | VK 500-40 with Table bore 12H7, Precision ram adjustment, Return travel lock and Counter |
VK 500-40 - Related Products
- Suitable for Standard Manual Presses (Stamp Holes 8 H7 resp.20 H7)
- Compression
- Accuracy: ±2.0% F.S.
- Mechanical Overload Protection
- Outer Diameter: 50.0mm
- Height: 71.0mm
- Connection: 1m Integral Cable
- Stainless Steel
| Type | Rod Type |
| Application | Compression |
| Full Scale | 112 lbs, 220 lbs, 560 lbs, 1120 lbs, 2200 lbs, 5500 lbs |
| Output | 0.35 mV/V, 0.7 mV/V, 0.9 mV/V, 1 mV/V, 1.5 mV/V |
| Precision | ±2.0 % FS |
| Excitation | 10 V DC |
- Potentiometer
- Rectangular Profile Housing
- Anodized Aluminium Housing
- Connection: 5-pin 9991 Plug Connector
- Durability: 10^8 Operations
| Type | Potentiometer |
| Full Scale | 10 mm, 25 mm [0.984"], 50 mm, 100 mm, 125 mm, 150 mm |
| Output | Potentiometric |
| Non-Linearity | ±0.05 % FS, ±0.10 % FS, ±0.20 % FS, ±0.30 % FS |
| Resolution | 0.01 mm |
| Excitation | 0 - 14 V DC, 0 - 25 V DC, 0 - 50 V DC |
- Integration via PROFIBUS, PROFINET or EtherNet/IP
- Automatic sensor recognition from burster TEDS
- 3.5" color touch screen display
- 16 measurement programs
- Rapid data logging on USB flash drive
- New evaluation elements (trapezoid window and thresholds)
- User-configurable I/Os and 6 real-time switching signals
- Smart auto setup for evaluation elements
| Input Type | DC Voltage, Potentiometer, Strain Gauge, ICP |
| # of Inputs | 2 |
| Max Sample Rate | 5 kHz |
| Evaluation | Threshold, Envelopes, Windows |
| Interface | Digital I/O, Profibus, Profinet, Ethernet/IP |
| Communication | Ethernet, USB |
- Comprehensive process monitoring delivered by innovative evaluation elements window, thresholds, trapeziums, envelopes and mathematical operations
- High measurement accuracy 0.05 % possible at 10 KHz sampling rate
- Flexible process integration thanks to a range of
- Fieldbus interfaces
- Simultaneous monitoring of two synchronous processes
- Ethernet, USB, RS232 as standard
- Up to 128 measurement programs for a large variety of parts
- Transfer of process, component and worker data
| Input Type | DC Voltage, Potentiometer, Strain Gauge, ICP, Resistance, Encoder, SSI |
| # of Inputs | 2, 3 |
| Max Sample Rate | 10 kHz |
| Evaluation | Threshold, Envelopes, Windows, Trapezium, Math Operations |
| Interface | Digital I/O, Profibus, Profinet, Ethernet/IP, EtherCAT |
| Communication | Ethernet, USB, RS-232 |
- Panel Mount Indicator
- Strain Gauge, Potentiometer or DC/DC Sensor Inputs
- 1 Input Channel, 2 Auxiliary Channels
- 2nd Input Channel (Optional)
- A Range of Mathematical Functions
- Protection Class: IP54
- RS-232/485, Profibus Interfaces (Option, Model 9163)
- RS-232/485, USB Interfaces (Option, Model 9163-V3)
| Input Type | DC Voltage, DC Current, Strain Gauge, Thermocouple/RTD |
| No. of Inputs | 2 |
| Excitation | 2.5 V DC, 5 V DC, 10 V DC, 15 V DC, 24 V DC |
| Output Type | DC Voltage |
| Interface | RS-232/485, USB, Profibus |
| Supply Power | 11 - 27 V DC |
