VK 1200-60, Manual toggle press
Toggle press with 12.0 kN Capacity and a working stroke of 60 mm.
Features:
- Manual toggle press
- Capacity: 12 kN
- Working stroke: 60 mm
- Throat: 80 mm
- Daylight: 45 - 245 mm
- Table size: 157 x 115 mm
- Ram bore Ø x Depth: 10H7 x 30 mm
- Ram area: 31 x 31
Manufacturer: Mäder Pressen
Quote
Description
Specifications
Models & Accessories
Related Products
Similar Products
VK 1200-60 - Description
VK range
The square ram has significant advantages compared with the round ram:
- Absolute protection against twisting
- Hardened and precisely ground ram
- Press ram guide free from play
- Large tool locating surface
- Guides in tool therefore usually unnecessary
- Practically maintenance-free operation
mäder hand-operated toggle presses with square ram are ideal tools for manufacturing small precision parts with tight tolerances in small and medium batches where automation would be too cost-intensive.
ERGOPRESS® hand lever
- Ergonomic user comfort
- 360º stepless adjustment
- Lever angled to the side: free view of work area and ergonomically comfortable position
- Simple and easy conversion for left-handers (except HS and Z option) without losing tool setting. Ideal for job sharing on one press

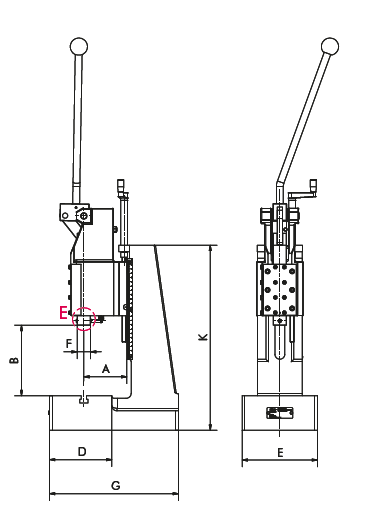

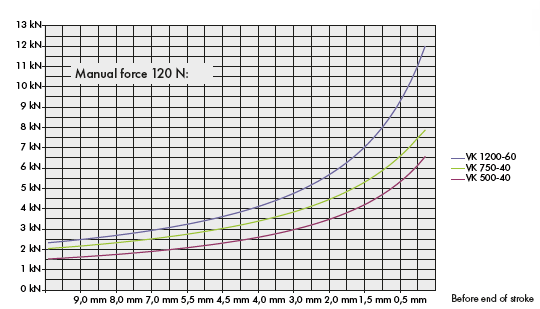

VK 1200-60 - Specifications
| Type of Press | Toggle Press |
| Capacity | 12.0 kN |
| Working Stroke | 60 mm |
| Daylight Start | 45 mm |
| Daylight End | 245 mm |
| Table Size | 157 x 115 mm |
| Ram Dimensions | 10H7 x 30 mm |
| Ram Area | 31 x 31 |
VK 1200-60 - Models & Accessories
Models
| VK 1200-60 | |

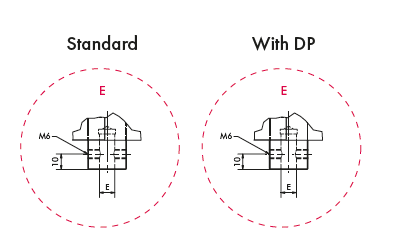

| VK 1200-60 DP | VK 1200-60 with Precision ram adjustment |
| VK 1200-60 HS | VK 1200-60 with Return travel lock |
| VK 1200-60 DP HS | VK 1200-60 with Precision ram adjustment and Return travel lock |
| VK 1200-60 Z | VK 1200-60 with Counter |
| VK 1200-60 DP Z | VK 1200-60 with Precision ram adjustment and Counter |
| VK 1200-60 HS Z | VK 1200-60 with Return travel lock and Counter |
| VK 1200-60 DP HS Z | VK 1200-60 with precision ram adjustment, Return travel lock and Counter |
| VK 1200-60 TB | VK 1200-60 with Table bore 12H7 |
| VK 1200-60 TB DP | VK 1200-60 with Table bore 12H7 and Precision ram adjustment |
| VK 1200-60 TB HS | VK 1200-60 Table bore 12H7 and Return travel lock |
| VK 1200-60 TB DP HS | VK 1200-60 with Table bore 12 H7, Precision ram adjustment and Return travel lock |
| VK 1200-60 TB Z | VK 1200-60 with Table bore 12H7 and Counter |
| VK 1200-60 TB DP Z | VK 1200-60 with Table bore 12H7, Precision ram adjustment and Counter |
| VK 1200-60 TB HS Z | VK 1200-60 with Table bore 12H7, Return travel lock and Counter |
| VK 1200-60 TB DP HS Z | VK 1200-60 with Table bore 12H7, Precision ram adjustment and Counter |
