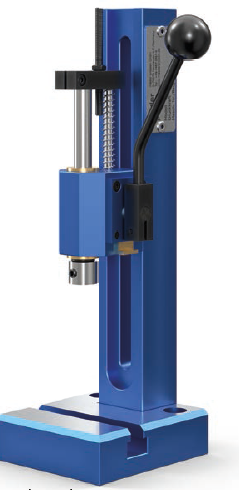

MPZ 500-30, Manual Rack and Pinion press
Micro Rack and Pinion press with 500 N Capacity and a working stroke of 25 mm.
Features:
- Manual Micro Rack and Pinion press
- Capacity: 500 N
- Working stroke: 25 mm
- Throat: 30 mm
- Daylight: 25 - 150 mm
- Table size: 80 x 60 mm
- Ram Ø: 16 mm
Manufacturer: Mäder Pressen
Quote
Description
Specifications
Models & Accessories
Related Products
MPZ 500-30 - Description
The MicroPress® rack and pinion press is particularly suitable for precise fitting work in light engineering, where the force needed is low but where the operator wants to work sensitively.
The advantages:
- Press table with T-slot as standard in scope of supply
- Alternatively, press tables with table bore TB or in flat version or to customer specification can be supplied.

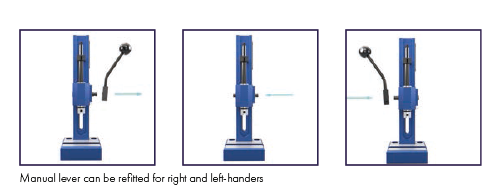

- Quickly and easily converted from right-handed to left-handed operation
- Adjustable daylight
- Precise guidance of ram
- Cushioned return stroke
- Stroke length adjustable
- Hand lever adjustable over 360°
- Lightweight design

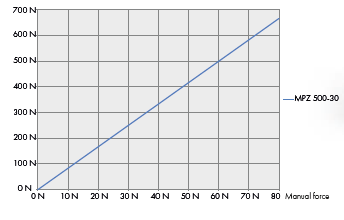

MPZ 500-30 - Specifications
| Type of Press | Rack and Pinion Press |
| Capacity | 500 N |
| Working Stroke | 25 mm |
| Daylight Start | 25 mm |
| Daylight End | 150 mm |
| Table Size | 80 x 60 mm |
| Ram Size | 16 mm |
MPZ 500-30 - Models & Accessories

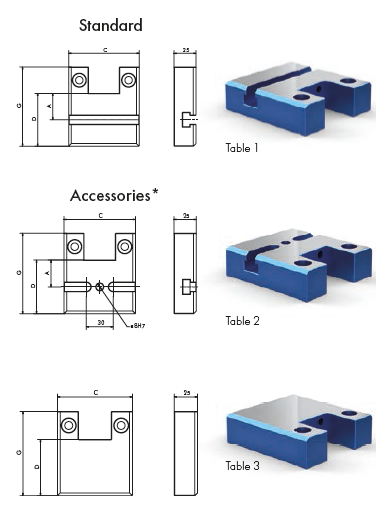

Models
| MPZ 500-30 | |
| MPZ 500 table 1 with T-slot | |
| MPZ 500 table 2 with TB 8H7 | |
| MPZ 500 table 3 plane |
