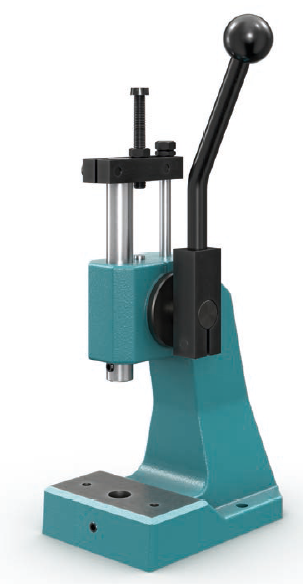

HP 40, Manual Rack and Pinion press
Rack and Pinion press with 750 N Capacity and a working stroke of 35 mm.
Features:
- Manual Rack and Pinion press
- Capacity: 750 N
- Working stroke: 35 mm
- Throat: 40 mm
- Daylight: 60 mm
- Table size: 80 x 35 mm
- Ram Ø: 14 mm
Manufacturer: Mäder Pressen
Quote
Description
Specifications
Related Products
HP 40 - Description
The Micro HP 40 press represents the classic watchmaker‘s rack and pinion press. Its small and compact design permits precise and sensitive work in the lower force segment. The table bore is aligned with the ram bore, permitting both fast and precise tool change. This is an advantage for small runs or one-off part production.
The advantages:
- Stroke length infinitely adjustable
- Precise guidance of ram
- Hand lever freely positionable

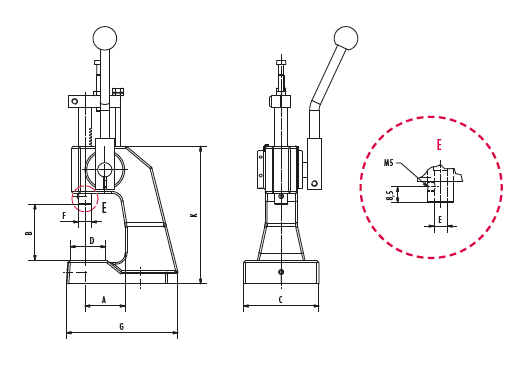

HP 40 - Specifications

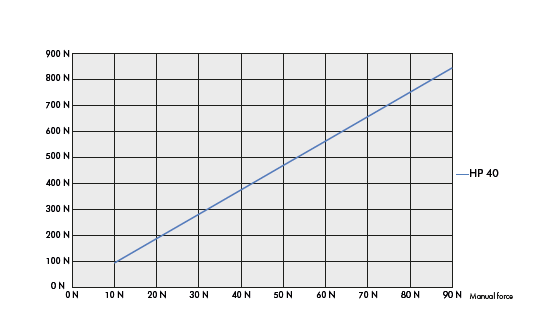

| Type of Press | Rack and Pinion Press |
| Capacity | 750 N |
| Working Stroke | 35 mm |
| Daylight Start | 60 mm |
| Table Size | 80 x 35 mm |
| Ram Size | 14 mm |
