XL-VKL 2400-40-300, Toggle press
Toggle press with 24 kN Capacity at 6 Bar and a Working stroke of 40 mm.
Features:
- Pneumatic Toggle press
- Capacity: 40 mm
- Working stroke: 40 mm
- Throat: 130 mm
- Daylight: 130 - 280 mm
- Table size: 200 x 220
- Ram bore Ø x Depth: 12H7 x 30 mm
- Ram Ø / Ram area: 31 x 31 mm
Manufacturer: Mäder Pressen
Quote
Datasheet
Description
Specifications
Downloads
Related Products
Similar Products
XL-VKL 2400-40-300 - Description
Pneumatic toggle press XL-VKL range
Presses with XL throat are designed for processing large and bulky parts. The press stand consists of a stable welded structure which can be modified to suit customers‘ requirements. XL pneumatic toggle presses can be provided with the standard mäder MPS-2 controller or with customer-specified controllers.
Other quality features:
- Factory pre-set pressure point
- Right-angled gearbox for simple height adjustment of the press head
- Side-mounted measuring strip for fast reproduction of settings when changing the tool
- Practically maintenance-free double-acting cylinder
- Low noise: less than 75 dB

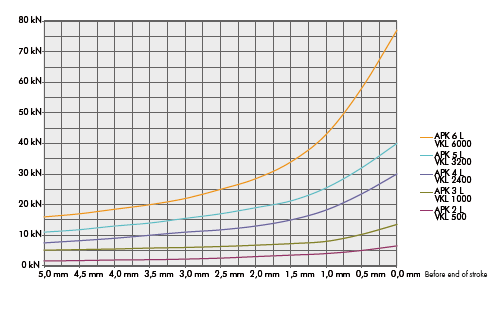

XL-VKL 2400-40-300 - Specifications
| Type | Toggle press |
| Capacity | 24.0 kN |
| Working Stroke | 40 mm |
| Daylight start | 130 mm |
| Daylight end | 280 mm |
| Table size | 200 x 220 mm |
| Ram Dimensions | 12H7 x 30 mm |
| Ram Size | 31 x 31 mm |
