NP 2000, Toggle press
- Manually assisted Pneumatic Toggle press
- Capacity: 20 kN
- Manual feed stroke: 40 mm
- Throat: 130 mm
- Daylight: 58 - 325 mm
- Table size: 200 x 190 mm
- Ram bore Ø x Depth: 20H7 x 25 mm
- Ram Ø: 40 x 40
Manually assisted pneumatic toggle press
Manually assisted toggle presses are used when, due to particular features of the workpiece, both hands cannot be engaged in two-handed operation at the beginning of the working stroke and a large force still has to be achieved at the end of the stroke.
With the NP manually assisted pneumatic toggle presses, safe working is possible in such cases. The ram is lowered to the power stroke position using the manual lever and the workpiece is then held by the force of the lever. A sensor registers this position. At the same time, the workpiece can be released and a pushbutton pressed with the second hand which then initiates the power stroke.
The power stroke can only be initiated when both hands are engaged. Hence, if the manual lever were released, for example, the ram would be raised by a safety mechanism and the permission for the power stroke in the controller would thus be removed. The length of the pneumatic power stroke of NP manually assisted pneumatic toggle presses and therefore the TDC position can be steplessly adjusted with high precision from 0 mm - 6 mm stroke length using the standard fine adjustment facility.

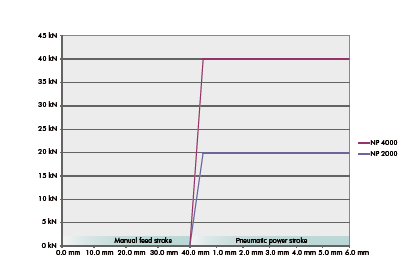

As a result of the special transmission mechanism, a constant power stroke is available over the whole length of the stroke.
| Type | Manually Assisted Toggle Press |
| Capacity | 20.0 kN |
| Manual feed stroke | 40 mm |
| Daylight start | 58 mm |
| Daylight end | 325 mm |
| Table size | 200 x 190 mm |
| Ram Dimensions | 20H7 x 25 mm |
| Ram Size | 40 x 40 mm |
Toggle presses Datasheet |
- Suitable for Standard Manual Presses (Stamp Holes 8 H7 resp.20 H7)
- Compression
- Accuracy: ±2.0% F.S.
- Mechanical Overload Protection
- Outer Diameter: 50.0mm
- Height: 71.0mm
- Connection: 1m Integral Cable
- Stainless Steel
| Type | Rod Type |
| Application | Compression |
| Full Scale | 112 lbs, 220 lbs, 560 lbs, 1120 lbs, 2200 lbs, 5500 lbs |
| Output | 0.35 mV/V, 0.7 mV/V, 0.9 mV/V, 1 mV/V, 1.5 mV/V |
| Precision | ±2.0 % FS |
| Excitation | 10 V DC |
- Potentiometer
- Rectangular Profile Housing
- Anodized Aluminium Housing
- Connection: 5-pin 9991 Plug Connector
- Durability: 10^8 Operations
| Type | Potentiometer |
| Full Scale | 10 mm, 25 mm [0.984"], 50 mm, 100 mm, 125 mm, 150 mm |
| Output | Potentiometric |
| Non-Linearity | ±0.05 % FS, ±0.10 % FS, ±0.20 % FS, ±0.30 % FS |
| Resolution | 0.01 mm |
| Excitation | 0 - 14 V DC, 0 - 25 V DC, 0 - 50 V DC |
- Integration via PROFIBUS, PROFINET or EtherNet/IP
- Automatic sensor recognition from burster TEDS
- 3.5" color touch screen display
- 16 measurement programs
- Rapid data logging on USB flash drive
- New evaluation elements (trapezoid window and thresholds)
- User-configurable I/Os and 6 real-time switching signals
- Smart auto setup for evaluation elements
| Input Type | DC Voltage, Potentiometer, Strain Gauge, ICP |
| # of Inputs | 2 |
| Max Sample Rate | 5 kHz |
| Evaluation | Threshold, Envelopes, Windows |
| Interface | Digital I/O, Profibus, Profinet, Ethernet/IP |
| Communication | Ethernet, USB |
- Comprehensive process monitoring delivered by innovative evaluation elements window, thresholds, trapeziums, envelopes and mathematical operations
- High measurement accuracy 0.05 % possible at 10 KHz sampling rate
- Flexible process integration thanks to a range of
- Fieldbus interfaces
- Simultaneous monitoring of two synchronous processes
- Ethernet, USB, RS232 as standard
- Up to 128 measurement programs for a large variety of parts
- Transfer of process, component and worker data
| Input Type | DC Voltage, Potentiometer, Strain Gauge, ICP, Resistance, Encoder, SSI |
| # of Inputs | 2, 3 |
| Max Sample Rate | 10 kHz |
| Evaluation | Threshold, Envelopes, Windows, Trapezium, Math Operations |
| Interface | Digital I/O, Profibus, Profinet, Ethernet/IP, EtherCAT |
| Communication | Ethernet, USB, RS-232 |
- Panel Mount Indicator
- Strain Gauge, Potentiometer or DC/DC Sensor Inputs
- 1 Input Channel, 2 Auxiliary Channels
- 2nd Input Channel (Optional)
- A Range of Mathematical Functions
- Protection Class: IP54
- RS-232/485, Profibus Interfaces (Option, Model 9163)
- RS-232/485, USB Interfaces (Option, Model 9163-V3)
| Input Type | DC Voltage, DC Current, Strain Gauge, Thermocouple/RTD |
| No. of Inputs | 2 |
| Excitation | 2.5 V DC, 5 V DC, 10 V DC, 15 V DC, 24 V DC |
| Output Type | DC Voltage |
| Interface | RS-232/485, USB, Profibus |
| Supply Power | 11 - 27 V DC |

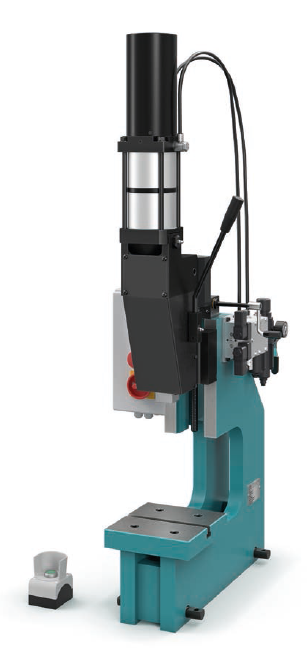

- Manually assisted Pneumatic Toggle press
- Capacity: 40kN
- Manually feed stroke: 40 mm
- Throat: 130 mm
- Daylight: 58 - 325 mm
- Table size: 200 x 190 mm
- Ram bore Ø x Depth: 20H7 x 25 mm
- Ram Ø: 40 x 40 mm
| Type | Manually Assisted Toggle Press |
| Capacity | 40.0 kN |
| Manual feed stroke | 40 mm |
| Daylight start | 58 mm |
| Daylight end | 325 mm |
| Table size | 200 x 190 mm |
