VibSys, DIN Rail Mount Conditioners
VibSys is an advanced vibration monitoring system and cloud gateway that enables continuous vibration measurements on any rotating machine, integrating with data analysis platforms for real-time machine insights and predictive maintenance.
Features:
- 2-channel vibration monitoring, scalable system
- High signal-to-noise ratio with high-quality accelerometers
- Power over Ethernet (PoE), TCP-IP/TCP Modbus, CAN bus, Ethernet
- Cloud connectivity with secure data transmission protocols
- API data interface for integration with control systems
- DIN-rail mounted, compact transmitter-based design
- CE, UKCA, and EMC compliant
Manufacturer: Istec International B.V.
Quote
Description
Specifications
Applications
Similar Products
VibSys - Description
VibSys is a vibration monitoring system with an integrated cloud gateway, designed for continuous monitoring of rotating machinery. The system supports two independent vibration channels, and multiple devices can be connected to scale the system for larger applications. VibSys acquires data from high-quality accelerometers with a high signal-to-noise ratio, ensuring precise and reliable vibration monitoring.

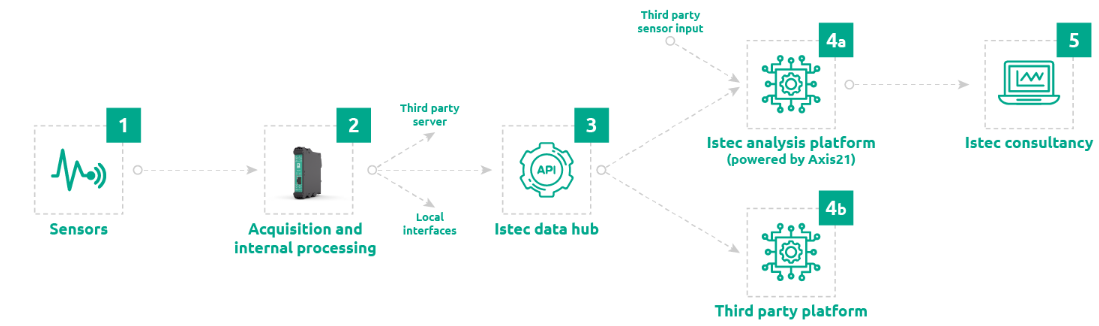

The system functions as a gateway, acquiring and pre-processing vibration data from sensors and transferring it to data analysis platforms via an API. This allows seamless integration with various platforms for further data processing and analysis, without compromising data quality or availability. VibSys also supports the processing of additional parameters, such as speed signals, and offers a 4-20 mA output for direct connection to PCs or other control systems.
VibSys - Specifications
| Interface | TCP/IP |
| EtherNet/IP | |
| Output Type | 4 - 20 mA |
VibSys - Applications

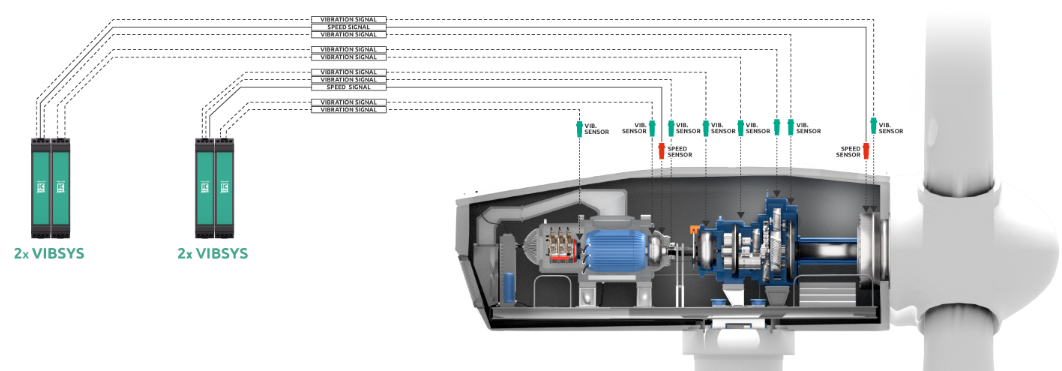

Wind Turbine
VibSys - Similar Products
- Accepts signal inputs from 3-wire voltage sensors (Hall-effect & proximity),
- Accepts 2-wire voltage signals or digital input signals from encoders.
- Dynamic monitoring, comparing chns, reverse rotation, creep and standstill.
- Input Voltage Ranges from 20 mVrms to 80 Vrms
- Input Frequency capable from 0.025 Hz up to 35 kHz (200kHz for Digital Pulse)
- Six configurable high speed relays (10 ms response time) for multiple speed functions
- Three highly accurate analog outputs (4-20 mA or optional 2 – 10 V)
- Three Frequency Signal Outputs, (open collector, max. 24 V, 100 ma)
| Interface | TCP/IP, RS-485 |
| Input Type | 20 milli Vrms, 0 - 10 V AC, 80 Vrms, Frequency |
| # of Inputs | 3 |
| Output Type | 2 - 10 V DC, 4 - 20 mA |
| Max Bandwidth | 5 kHz |
| Excitation | 24 V DC |
- Accepts signal inputs from 3-wire voltage sensors (Hall-effect & proximity),
- Accepts 2-wire voltage signals or digital input signals from encoders.
- Dynamic monitoring, comparing chns, reverse rotation, creep and standstill.
- Input Voltage Ranges from 20 mVrms to 80 Vrms
- Input Frequency capable from 0.025 Hz up to 35 kHz (200kHz for Digital Pulse)
- Four configurable high speed relays (10 ms response time) for multiple speed functions
- Two highly accurate analog outputs (4-20 mA or optional 2 – 10 V)
- Two Frequency Signal Outputs, (open collector, max. 24 V, 100 ma)
| Interface | TCP/IP, RS-485 |
| Input Type | 20 milli Vrms, 0 - 10 V AC, 80 Vrms, Frequency |
| # of Inputs | 2 |
| Output Type | 2 - 10 V DC, 4 - 20 mA |
| Max Bandwidth | 10 kHz |
| Excitation | 24 V DC |
- Accepts 1 signal input from 3-wire voltage sensors (Hall-effect & proximity),
- Accepts 2-wire voltage signals or digital input signals from encoders.
- Dynamic monitoring, comparing chns, reverse rotation, creep and standstill.
- Input Voltage Ranges from 20 mVrms to 80 Vrms
- Input Frequency capable from 0.025 Hz up to 35 kHz (200kHz for Digital Pulse)
- Two configurable relays (10 ms response time) for multiple speed functions
- One highly accurate analog outputs (4-20 mA or optional 2 – 10 V)
- One Frequency Signal Outputs, (open collector, max. 24 V, 100 ma)
| Interface | TCP/IP, RS-485 |
| Input Type | 20 milli Vrms, 0 - 10 V AC, 80 Vrms, Frequency |
| # of Inputs | 1 |
| Output Type | 2 - 10 V DC, 4 - 20 mA |
| Max Bandwidth | 10 kHz |
| Excitation | 24 V DC |
- Fast response to overspeed events
- One high-speed relay output
- Supports 3-wire and 2-wire voltage sensors
- Modbus TCP connectivity
- Configurable analog output for speed transmission
| Interface | TCP/IP |
| Input Type | Frequency |
| # of Inputs | 1 |
| Output Type | 4 - 20 mA |
| Max Bandwidth | 35 kHz |
| Excitation | 24 V DC |
- High accuracy speed measurement: 0.002% for limits and 0.1% referenced to 20 mA
- 2 frequency + 2 binary inputs
- 2 current, 4 relay and 2 Open Collector outputs
- Sensor monitoring for all sensor technologies
- Ethernet interface - confi guration via Windows® software
- Extensive parameter and limit setting possibilities
- Programmable logical, diagnostic and measurement functions
- Supply 18..36 VDC or 90..264 VAC
| Interface | TCP/IP |
| Input Type | Frequency |
| # of Inputs | 2 |
| Output Type | 0 - 20 mA, 4 - 20 mA |
| Isolation | Yes |
| Supply Power | 18 - 36 V DC, 90 - 264 V AC |
