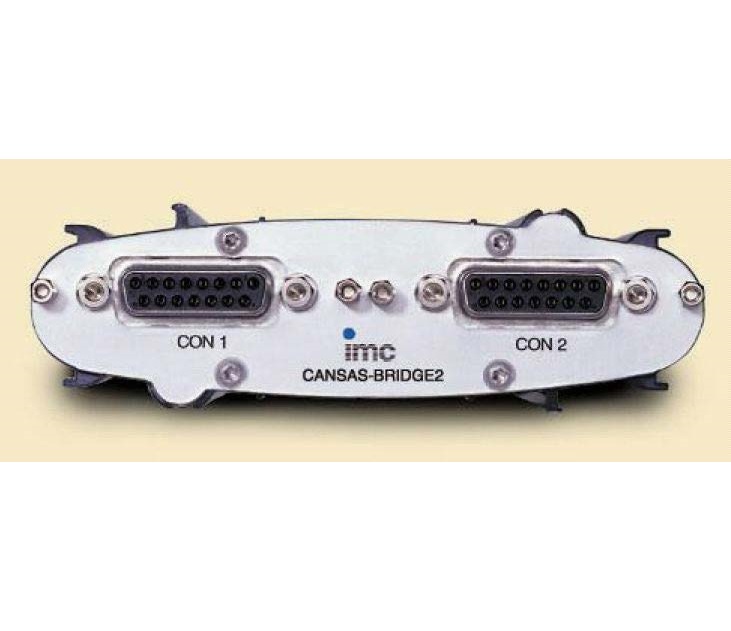

CANSAS-BRIDGE-2, imc CANSAS Module
CANSAS-BRIDGE-2 is a high-performance module for acquisition of measurement bridge and strain gauge data. Each channel is amplified, filtered and digitized separately. The module also offers full, half and quarter bridge measurement.
Features:
- CANSAS-BRIDGE-2 Differential Amplifier for Bridge & Strain Gauge Measurement
- 2 Analog Input Channels
- Galvanically Isolated Channels
- Simultaneous Sampling of All Channels
- Power Supply via CAN Cable Possible
- Automatic Self-Start on Power-On
Manufacturer: imc Test & Measurement
Quote
Datasheet
Description
Specifications
Models & Accessories
Downloads
Related Products
Similar Products
CANSAS-BRIDGE-2 - Description
The CANSAS-BRIDGE-2 is a high-performance module for acquisition of measurement bridge and strain gauge data. Each channel is amplified, filtered and digitized separately. The module also offers full, half and quarter bridge measurement.
CANSAS-BRIDGE-2 - Specifications
| Family | imc CANSAS |
| Unit Type | Module |
| Standalone | |
| Input Type | Strain Gauge |
| Analog Inputs | 2 |
| Max Bandwidth | 1 kHz |
| Max Sample Rate | 5 kHz |
| Resolution | 16-bit |
| Communication | CANbus |
| Min Temperature | -30 °C |
| Max Temperature | 85 °C |
CANSAS-BRIDGE-2 - Models & Accessories
Models
| CANSAS-BRIDGE-2 | 2 Analog Inputs, Aluminum Strand Cast Housing, 2x DSUB Signal-Conn |
| CANSAS-K-BRIDGE-2 | 2 Analog Inputs, Casette for 19" Subtrack, 2x DSUB Signal-Conn |
CANSAS-BRIDGE-2 - Downloads
TD CANSAS BRIDGE2 Datasheet |
imc Company Brochure Brochure |
