WTT - Compact Wheel Torque Transducer, Wheel Torque Transducer

A waterproof wheel torque transducer integrated with radio telemetry which measures torque and axial direction at wheels of road vehicles. Can be operated synchronously from one receiver unit, creating one synchronous data stream.
Wheel Force Transducer Brake
Wheel Force Transducer Brake

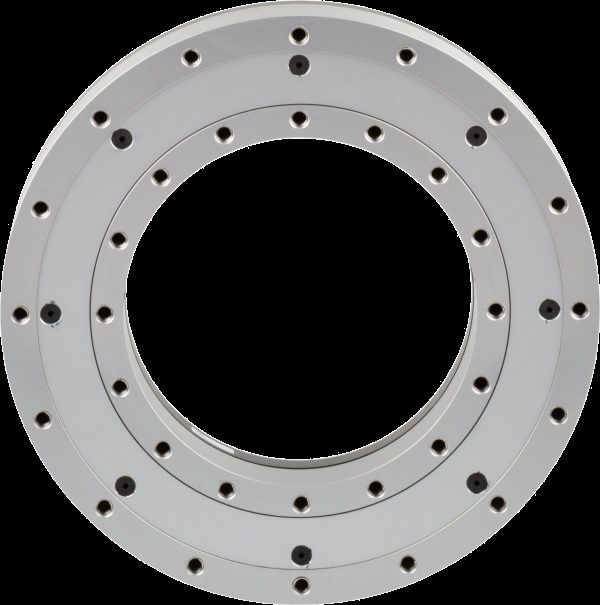

Rear of WTT - Compact Tansducer

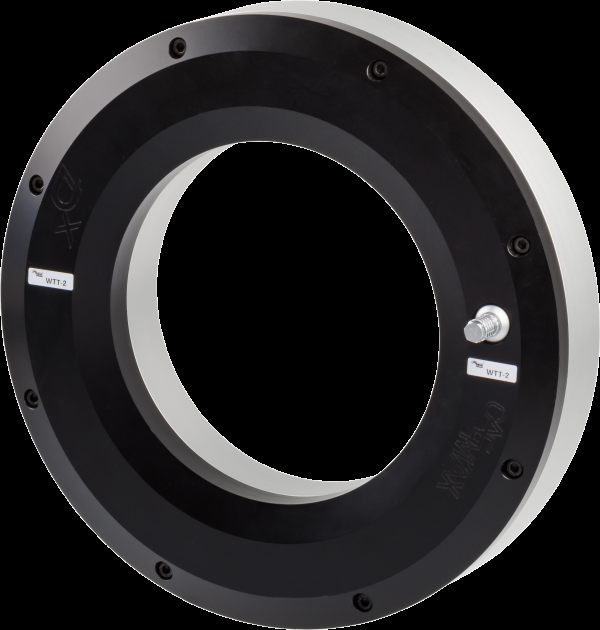

WTT - Compact Wheel Torque Transducer
Features:
  • Measurement of driving and breaking torques
  • sealed IP67 (waterproof)
  • Transmitter electronics integrated in sensor
  • My = 3.000 Nm (4.500 Nm optional)
  • Power supply: rechargeable battery (approx. 50 h operating time)
  • Working temperature (Sensor): -10°C … +60°C
  • Programmable amplifiers with autozero function
  • Convenient parameterization by RemusLAB or webbrowser
  • Telemetry transmitter with analog and CAN output
  • Simultaneous recording of up to 4 WTTs
Manufacturer:  CAEMAX imc group
Quote
Datasheet
Description
Specifications
Downloads
Similar Products
WTT - Compact Wheel Torque Transducer - Description

CAEMAX presents a highly compact wheel torque transducer to measure torque in axial direction at the wheels of road vehicles. The new WTT is not only waterproof (IP 67), but due to its integrated radio telemetry also highly compact. Up to four WTT measurement wheels can be operated synchronously from one receiver unit, creating one synchronous data stream. All of this without wiring or elaborate constructions—and highly fail-safe due to digital data transmission!

Fully differential amplifiers (incl. bridge supply) ensure a maximum of noise suppression.

Due to mechanically induced nonlinearities, accurate calibration for each wheel on a special designed test rig is essential. The in-house CAEMAX calibration test rig has been redesigned to offer optimal calibration.

Besides convenient channel parametrization, CAEMAX‘s data acquisition software RemusLAB offers online display of measurement data in physical units. Measurement data from the WFT can be stored in one file with further measurement data from other sources synchronously!







WTT - Compact Wheel Torque Transducer - Specifications
Input TypesStrain Gauge
Temperature
No. of Inputs2-20
OutputAnalog
Ethernet
CANbus
WTT - Compact Wheel Torque Transducer - Downloads
WTT - Compact Wheel Torque Transducer - Similar Products
  • Up to six analog inputs per transmitter unit: strain gauges, temperatures, analog signals, freely programmable
  • Sampling rate up to 4,8 kHz (16 bit) per channel
  • Synchronous data collection and processing of up to 4 transmitters (SCTs)
  • Integrated standard interfaces: Analog, CAN, Ethernet
  • Extended Temperature available -40 °C to +125 °C (Dx-HT)
  • Measurement value output in physical units available
  • No authorization required for radio transmission (2.4 GHz band)
  • Convenient parametrization by RemusLAB software or web browser
Input Types
Strain Gauge,
Vdc,
Temperature,
Frequency
No. of Inputs
2-20
Output
Analog,
CANbus
  • 16 bit resolution A/D
  • Simultaneous Sampling of all Channels
  • Bandwidth up to 24kHz for the 4 Channel System
  • Radio Telemetry Transmission
  • Uses 1 Data Transmission Module, with up to 16 Input Modules
  • Water Resistant - IP65 modules
  • Powered from 7-30 Vdc
Input Types
Strain Gauge,
Vdc,
Temperature,
IEPE-ICP
No. of Inputs
2-20
Output
Analog,
Ethernet
  • Waterproof (IP66, IP67)
  • Ideal for brake testing due to excellent heat dissipation
  • Removable stator for convenient balancing of wheels
  • Online zeroing - system is ready to measure after three turns of the wheel
  • Measurement range: Fx, Fz = ±45 kN, Fy = ±25 kN, Mx, My, Mz = 8.75 kNm
  • Angular resolution 0.072°
  • Working temperature range (sensor): -40°C to +150°C
  • Convenient parameterization with software RemusLAB
Input Types
Strain Gauge
No. of Inputs
2-20
Output
Analog,
Ethernet,
CANbus
  • Static & Dynamic measurements up to 24,000 Hz
  • 2 to 64 channel systems
  • Inputs for Strain Gauges, Temperature, ICP sensors or Voltages
  • 4 Vdc Excitation & Gains selectable, 125, 250, 500, 1000 or 2000
  • 16 bit ADC, simultaneous sampling
  • Full software programmable & Auto Zero calibration
  • Inductive or battery powered
  • Rugged, water proof housing
Input Types
Strain Gauge,
Vdc,
Temperature
No. of Inputs
8 +,
2-20
Output
Analog
  • Steering torque range ±100 Nm or ±200 Nm
  • Steering angle range ±1474,56°
  • Rotational velocity range ±1000°/sec
  • Acceleration in x, y, z (optional)
  • Rotational acceleration (optional)
  • CAN and analog output
  • Online monitoring of all channels in physical values
  • Inductive power supply by control unit
Input Types
Strain Gauge,
Vdc
No. of Inputs
2-20
Output
Analog,
CANbus
